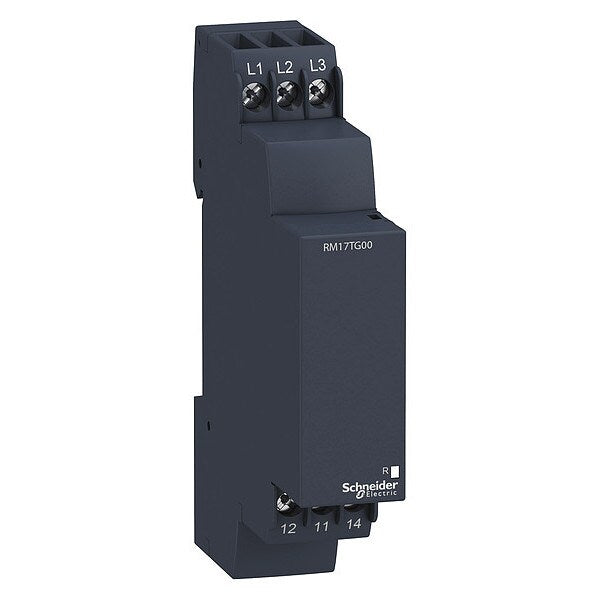

3 Phase Relay 250V 5Amp Rm17

SKU
Brand Schneider Electric
Categories
Description Relay, Base Shape Octal, Contact Form SPDT, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 7 A @ 30V, Current Rating 5 A, Flat Pin Width Not Applicable, Input Voltage 183 to 528V AC, Monitored Parameters Phase Failure, Phase Sequence, Number of Pins 6, Restart Auto, Restart Time Delay 1.5 sec, IP Rating IP30, Mounting Style DIN Rail, Body Depth 2.58 in, Body Height 3.54 in, Body Width 0.69 in, Electrical Operating Durability 100,000, Frequency 50/60 Hz, Housing Material Plastic
graingerSKU: 48P930, mscSKU: , zoro_no: G0572069, mongo_id: 65bbe85f22d7a989a98ee799

Web Price

$153.74 / each

Qty

Product Details

AC Contact Rating - Relay 5A @ 250V

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Base Shape Octal

Base Type - Plug In Relay Octal

Body Depth 2.58 in

Body Depth - Relay 3.74 in

Body Height 3.54 in

Body Height - Relay 1.06 in

Body Width 0.69 in

Body Width - Relay 3.07 in

Coil Volts 250VAC/DC

Connections - Terminals screw terminals, 1 x 0.5...1 x 4 mmÃÂ² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contact Form SPDT

Contact Form - Relay SPDT

Contact Rating (AC) 5 A @ 250V

Contact Rating (DC) 7 A @ 30V

Contacts Type And Composition 1 C/O

Control Circuit Frequency 50...60 Hz +/- 10 %

Control Circuit Voltage Limits 12 % + 10 % Un

Country of Origin (subject to change) Multiple

Current Rating 5 A

DC Contact Rating - Relay 7A @ 30V

Dielectric Test Voltage 2 kV AC 50 Hz, 1 min

Electrical Connection Type Screw

Electrical Durability 100000 cycles

Electrical Operating Durability 100,000

Electromagnetic Compatibility emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2

Flat Pin Width Not Applicable

Frequency 50/60 Hz

Housing Material Plastic

Input or Control Voltage 183 to 528V AC

Input Voltage 183 to 528V AC

Insulation Resistance > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

IP Rating IP30

Item - Relay Phase Monitor Relay

Local Signalling for relay ON LED (yellow)

Marking CE

Maximum Operating Temperature 122 Degrees F

Maximum Switching Capacity 1,250 VA

Maximum Switching Current 5 A

Maximum Switching Voltage 250V AC/DC

Measurement Range 208...480 V voltage AC

Measurement Voltage Limits 183-528 V AC

Mechanical Durability 30000000 cycles

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -4 Degrees F

Minimum Switching Current 10 mA

Monitored Parameters Phase Failure, Phase Sequence

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Mounting Support 35 mm symmetrical DIN rail conforming to EN/IEC 60715

Nominal Output Current 5A

Non-Dissipating Shock Wave 4 kV

Number of Pins 6

Operating Position any position without derating

Operating Rate <= 360 operations/hour full load

Output Contacts 1 C/O

Over Voltage No

Overall Depth 2.84 in

Overvoltage No

Overvoltage Category III IEC 60664-1

Package Quantity 1

Phase Loss Sensitivity No

Phase Reversal No

Phase Unbalance No

Pollution Degree 3 IEC 60664-1

Power Consumption 1,250 VA

Power Consumption In Va 0-22 VA 400 V AC 50 Hz

Product Certifications C-tick || GL || CSA || UL || GOST

Product Or Component Type 3-phase control relay

Product Specific Application for 3-phase supply

Relative Humidity 95-95 % 55-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters phase sequence || phase failure detection (2 or more phase cut)

Relay Mounting Style DIN-Rail

Relay Name RM17TG

Relay Type control relay

Response Time <= 130 ms (in the event of a fault)

Restart Auto

Restart Time Delay 1.5 sec

Run-Up Delay At Power-Up 650 ms

Shock Resistance 15 gn 11 ms IEC 60255-21-1

Socket Code Configurator DIN-Rail / Octal / 6

Standards C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed

Supply Frequency 50/60 Hz +/- 10 %

Supply Voltage Limits 183-528 V AC

Switching Capacity In Va 1250 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type without

Under Voltage No

Utilisation Category AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1

Vibration Resistance 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1

Voltage Detection Threshold < 100 V AC

Voltage Range 183...528 V

Weight 4.64 oz

Width 17.5 mm

[Uc] Control Circuit Voltage 208...480 V

[Ui] Rated Insulation Voltage 400 V IEC 60664-1
