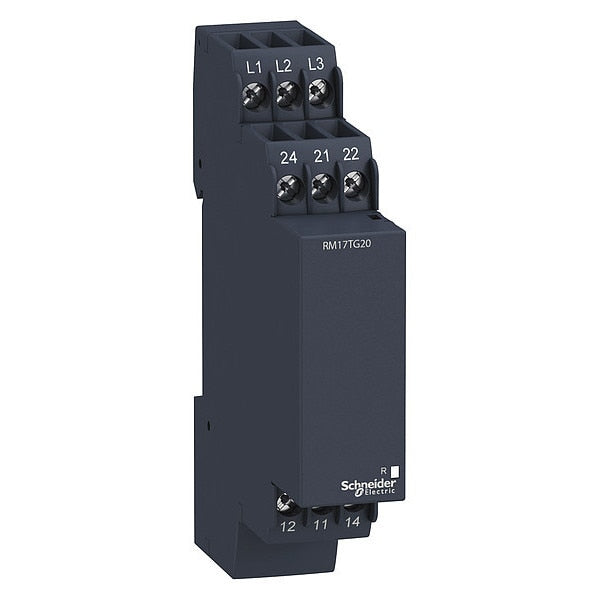

3 Phase Relay 250V 5Amp Rm17

SKU
Brand Schneider Electric
Categories
Description 3 Phase Relay 250V 5Amp Rm17
graingerSKU: 48P931, mscSKU: , zoro_no: G0572078, mongo_id: 65bbe7b13aaddbd5a90ae2af

Web Price

$169.99 / each

Qty

Product Details

Accessory Type 3 Phase Relay 250V 5Amp Rm17

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Coil Volts 250VAC/DC

Connections - Terminals screw terminals, 1 x 0.5...1 x 4 mmÃÂ² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contacts Type And Composition 2 C/O

Control Circuit Frequency 50...60 Hz +/- 10 %

Control Circuit Voltage 208 to 440 V

Control Circuit Voltage Limits 12 % + 10 % Un

Country of Origin (subject to change) Multiple

Dielectric Test Voltage 2 kV AC 50 Hz, 1 min

Electrical Durability 10000 cycles

Electromagnetic Compatibility emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2

Housing Material self-extinguishing plastic

Insulation Resistance > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

Local Signalling for relay ON LED (yellow)

Marking CE

Maximum Switching Voltage 250 V AC || 250 V DC

Measurement Range 208...440 V voltage AC

Measurement Voltage Limits 183-484 V AC

Mechanical Durability 30000000 cycles

Minimum Switching Current 10 mA 5 V DC

Mounting Support 35 mm symmetrical DIN rail conforming to EN/IEC 60715

Nominal Output Current 5A

Non-Dissipating Shock Wave 4 kV

Operating Position any position without derating

Operating Rate <= 360 operations/hour full load

Output Contacts 2 C/O

Overvoltage Category III IEC 60664-1

Package Quantity 1

Pollution Degree 3 IEC 60664-1

Power Consumption In Va 0-22 VA 400 V AC 50 Hz

Product Certifications GOST || C-tick || UL || CSA || GL

Product Or Component Type 3-phase control relay

Product Specific Application for 3-phase supply

Relative Humidity 95-95 % 55-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters phase sequence || phase failure detection (2 or more phase cut)

Relay Name RM17TG

Relay Type control relay

Response Time <= 130 ms (in the event of a fault)

Run-Up Delay At Power-Up 650 ms

Shock Resistance 15 gn 11 ms IEC 60255-21-1

Standards EN/IEC 60255-1

Supply Frequency 50/60 Hz +/- 10 %

Supply Voltage Limits 183-484 V AC

Switching Capacity In Va 1250 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type without

Utilisation Category AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1

Vibration Resistance 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1

Voltage Detection Threshold < 100 V AC

Voltage Range 183...484 V

Width 17.5 mm

[Uc] Control Circuit Voltage 208...440 V

[Ui] Rated Insulation Voltage 400 V IEC 60664-1
