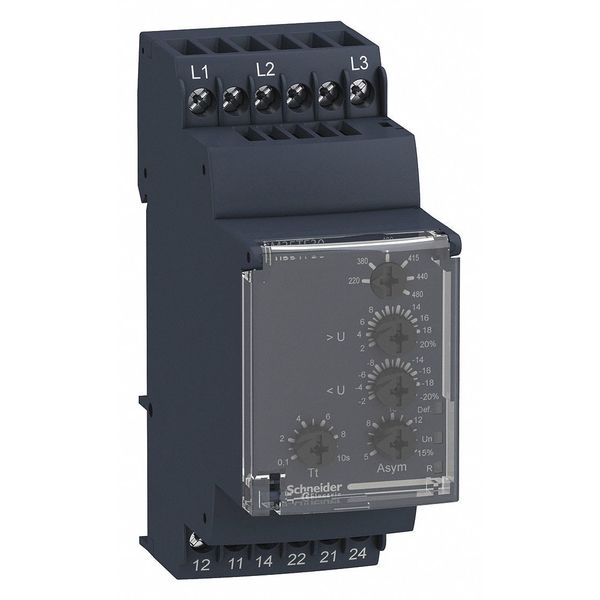

3 Phase Relay 250V 5Amp Rm35

SKU
Brand Schneider Electric
Categories
Description 3 Phase Relay 250V 5Amp Rm35
graingerSKU: 48P937, mscSKU: , zoro_no: G0854476, mongo_id: 65bbe7fc9a749db82276b1e2

Web Price

$289.99 / each

Qty

Product Details

Accessory Type 3 Phase Relay 250V 5Amp Rm35

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Coil Volts 250VAC/DC

Compatibility Code RM3

Connections - Terminals screw terminals, 1 x 0.5...1 x 4 mmÃÂ² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mmÃÂ² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contacts Type And Composition 2 C/O

Control Circuit Frequency 50...60 Hz +/- 15 %

Country of Origin (subject to change) Multiple

Dielectric Test Voltage 2 kV AC 50 Hz, 1 min

Electrical Durability 10000 cycles

Electromagnetic Compatibility emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2

Functionality overvoltage and undervoltage detection

Housing Material self-extinguishing plastic

Hysteresis 2-2 %

Insulation Resistance > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

Local Signalling for power ON LED (green) || for relay ON LED (yellow)

Maximum Measuring Cycle 150 ms measurement cycle as true rms value

Maximum Switching Current 5 A AC/DC

Maximum Switching Voltage 250 V AC/DC

Measurement Accuracy +/- 10 % of the full scale value

Measurement Error < 1 % over the whole range with voltage variation || 0.05 %/ÃÂ°C with temperature variation

Measurement Range 194...528 V voltage AC 50/60 Hz

Mechanical Durability 30000000 cycles

Minimum Switching Current 10 mA 5 V DC

Mounting Support 35 mm symmetrical DIN rail conforming to EN/IEC 60715

Nominal Output Current 5A

Non-Dissipating Shock Wave 4 kV

Operating Position any position without derating

Operating Rate <= 360 operations/hour full load

Output Contacts 1 C/O + 1 C/O, 1 per threshold

Overvoltage Category III IEC 60664-1

Package Quantity 1

Pollution Degree 3 IEC 60664-1

Power Consumption In Va 0-22 VA 400 V AC 50 Hz

Product Certifications C-tick || GOST || CSA || GL || UL

Product Or Component Type voltage control relay

Product Specific Application for 3-phase supply

Quality Labels CE

Relative Humidity 95-95 % 55-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters overvoltage and undervoltage between phases

Relay Name RM35UB3

Relay Type voltage control relay

Repeat Accuracy +/- 0.5 % input and measurement circuit || +/- 1 % time delay

Reset Time 1500 ms time delay

Response Time < 200 ms (in the event of a fault)

Run-Up Delay At Power-Up 650 ms

Shock Resistance 5 gn IEC 60068-2-27

Standards EN/IEC 60255-1

Supply Voltage Limits 194-528 V AC

Switching Capacity In Va 1250 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type adjustable 0.3...30 s, 0 + 10 % on crossing the threshold

Utilisation Category AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1

Vibration Resistance 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1

Voltage Detection Threshold 194 V

Width 35 mm

[Ui] Rated Insulation Voltage 400 V IEC 60664-1

[Us] Rated Supply Voltage 220...480 V AC 50/60 Hz +/- 10 %
