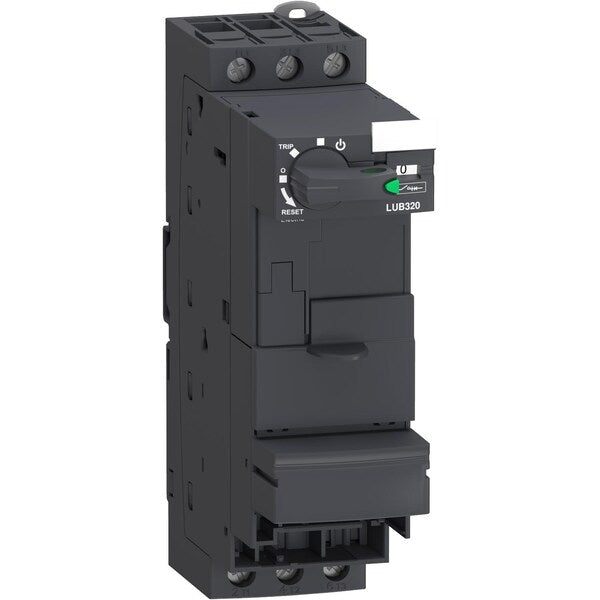

32A Self Protstr W/Cntrl Terms, 24V AC/DC; 48 to 72V AC/DC; 110 to 240V AC; 110 to 220V DC, 3 Poles

SKU
Brand Schneider Electric
Categories
Description 32A Self Protstr W/Cntrl Terms
graingerSKU: 48P503, mscSKU: , zoro_no: G0561876, mongo_id: 65bbe8c222d7a989a991370c

Web Price

$551.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -13 to 140ÃÂ°F (-25 to 60ÃÂ°C) with LUCM; -13 to 158ÃÂ°F (-25 to 70ÃÂ°C) with LUCA, LUCB, LUCC, LUCD

Ambient Air Temperature For Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contact Form Linked contacts (1 NO + 1 NC) IEC 60947-4-1; Mirror contact (1 NC) IEC 60947-1

Auxiliary Contacts Type Linked contacts 1 NO + 1 NC) IEC 60947-4-1; Mirror contact 1 NC) IEC 60947-1

Coil Volts 24V AC/DC; 48 to 72V AC/DC; 110 to 240V AC; 110 to 220V DC

Compatibility Code LUB

Connections - Terminals Power circuit screw clamp terminals 1 0.00 to 0.02 inÃÂ² (1 to 10 mmÃÂ²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 6 mmÃÂ²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 inÃÂ² (2.5 to 10 mmÃÂ²) flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 6 mmÃÂ²) flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 6 mmÃÂ²) rigid; Power circuit screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1.5 to 6 mmÃÂ²) flexible without cable end; Control circuit without connection

Control Circuit Voltage 24 V AC 50/60 Hz; 24 V DC; 48 to 72 V AC 50/60 Hz; 48 to 72 V DC; 110 to 240 V AC 50/60 Hz; 110 to 220 V DC

Conventional Free Air Thermal Current 32 A

Country of Origin (subject to change) France

Depth 126 mm

Device Application Motor control; Motor protection

Features Free of Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration; Suitability For Isolation

Fire Resistance 1760ÃÂ°F (960ÃÂ°C) parts supporting live components IEC 60695-2-12; 1202ÃÂ°F (650ÃÂ°C) IEC 60695-2-12

Fixing Mode Clipped DIN rail; Screw-fixed plate)

Heat Dissipation 3 W control circuit with LUCA, LUCB, LUCC, LUCD; 1.8 W control circuit with LUCM

Height 154 mm

Hz_ 50/60 Hz

Immunity To Microbreaks 3 ms control circuit

Immunity To Radioelectric Fields 10 V IEC 61000-4-6

Immunity To Voltage Dips 70% / 500 ms IEC 61000-4-11

IP Degree Of Protection IP20 IEC 60947-1 front panel and wired terminals); IP20 IEC 60947-1 other faces); IP40 IEC 60947-1 front panel outside connection zone)

Maximum Operating Rate 3600 cyc/h

Mechanical Durability 15 Mcycles

Network Frequency 40 to 60 Hz

Non-Dissipating Shock Wave 1 kV serial mode 24 to 240 V AC IEC 60947-6-2; 1 kV serial mode 48 to 220 V DC IEC 60947-6-2; 2 kV common mode 24 to 240 V AC IEC 60947-6-2; 2 kV common mode 48 to 220 V DC IEC 60947-6-2

Number of Poles 3

Operating Altitude 6561.68 ft (2000 m)

Operating Time 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit; 50 ms Greater than or Equal to 72 V closing with LUCA, LUCB, LUCC, LUCD control circuit; 60 ms 48 V closing with LUCA, LUCB, LUCC, LUCD control circuit; 70 ms 24 V closing with LUCA, LUCB, LUCC, LUCD control circuit; 65 ms closing with LUCM control circuit

Operating Voltage 690V AC

Package Quantity 1

Poles Description 3P

Product Certifications CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine

Product Name TeSys Ultra

Product Or Component Type Non reversing power base

Protective Treatment TH IEC 60068

Rated Impulse Withstand Voltage 6 kVIEC 60947-6-2

Rated Insulation Voltage 690 V IEC 60947-6-2 3; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1

Rated Operational Current 28.5 A Less than or Equal to 440 V; 23 A 500 V; 21 A 690 V

Rated Operational Voltage 690 V AC power circuit

Rated Service Breaking Capacity 50 kA 230 V; 50 kA 440 V; 10 kA 500 V; 4 kA 690 V

Resistance To Electrostatic Discharge 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2

Resistance To Fast Transients 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4

Resistance To Radiated Fields 9.14 V/m (10 V/m) 3 IEC 61000-4-3

Safe Separation Of Circuit 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Shock Resistance 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27

Standards EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine

Starter Type Non Reversing

Suitability For Isolation Yes

Tightening Torque Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) flat 0.20 in (5 mm); Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) Philips no 1 0.20 in (5 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) flat 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) Philips No 2 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) pozidriv No 2 0.24 in (6 mm)

Typical Current Consumption 200 mA 24 V DC I maximum while closing with LUCM; 220 mA 24 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 220 mA 24 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 25 mA 110 to 220 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD; 25 mA 110 to 240 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD; 280 mA 110 to 220 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 280 mA 110 to 240 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 280 mA 48 to 72 V AC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 280 mA 48 to 72 V DC I maximum while closing with LUCA, LUCB, LUCC, LUCD; 45 mA 48 to 72 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD; 45 mA 48 to 72 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD; 75 mA 24 V DC I rms sealed with LUCM; 80 mA 24 V DC I rms sealed with LUCA, LUCB, LUCC, LUCD; 90 mA 24 V AC I rms sealed with LUCA, LUCB, LUCC, LUCD

Utilisation Category AC-43; AC-44; AC-41

Vibration Resistance 2 gn 5 to 300 Hz) power poles open IEC 60068-2-27; 4 gn 5 to 300 Hz) power poles closed IEC 60068-2-27

Weight 0.865 kg

Width 45 mm
