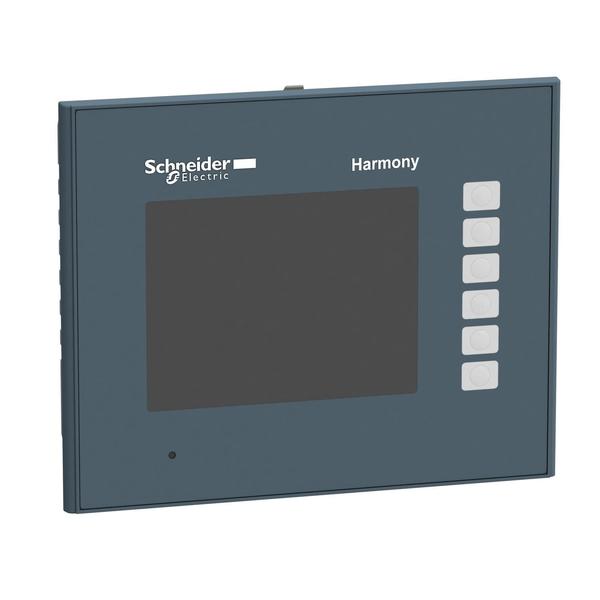

35 Color Touch Panel Qvgatft

SKU
Brand Schneider Electric
Categories
Description 35 Color Touch Panel Qvgatft

Web Price

$1,024.99 / each

Qty

Product Details

Accessory Type 35 Color Touch Panel Qvgatft

Ambient Air Temperature For Operation 0-50ÃÂ°C

Ambient Air Temperature For Storage -20-60ÃÂ°C

Backlight Lifespan 50000 hours white 25ÃÂ°C

Battery Type lithium internal RAM 100 days 5 day(s) 10 year(s)

Brightness 16 levels by touch panel || 16 levels by software

Character Font Chinese (simplified Chinese); ASCII (European characters); Japanese (ANK, Kanji); Korean; Taiwanese (traditional Chinese)

Control Button Type 6 operation defined using Vijeo Designer push-button key F1 to F6

Country of Origin (subject to change) Indonesia

Data Backed Up 128 kB internal RAM SRAM)

Depth 42 mm

Display Colour 65536 colours

Display Resolution 320 x 240 pixels QVGA

Display Size 3.5 inch

Display type backlit colour TFT LCD

Downloadable Protocols Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols

Enclosure Material PPT

Fixing Mode by 4 screw clamps

Front Material PPT

Height 106 mm

Inrush Current 30 A

Integrated Connection Type COM1 serial link SUB-D 9 RS232C 2400 to 115200 bps || COM2 serial link RJ45 RS485 2400 to 115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || USB 2.0 type A || USB 2.0 type mini B

Ip Degree Of Protection IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)

Local Signalling status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF)

Maximum Power Consumption In W 5.2 W when power is not supplied to external devices || 4.2 W when backlight is OFF || 4.3 W when backlight is dimmed || 9.6 W

Memory Description flash EPROM, 64 MB

Nema Degree Of Protection NEMA 4X front panel (indoor use)

Operating Altitude < 6561.68 ft (2000 m)

Operating System Harmony

Package Quantity 1

Product Certifications C-tick || cULus || CE || KCC || UKCA || UKEX

Product Mounting flush mounting

Product Or Component Type advanced touchscreen panel

Relative Humidity 10-90 % without condensation

Resistance To Electrostatic Discharge 6 kV contact discharge IEC 61000-4-2 level 3

Shock Resistance 147 m/sÃÂ² 3 chocks in each direction X, Y and Z EN/IEC 61131-2

Software Designation Vijeo Designer configuration software >= V6.1

Standards UL 508 || EN 61131-2 || IEC 61000-6-2

Supply external source

Supply Voltage Limits 19.2-28.8 V

Terminal Type touchscreen display

Touch Panel resistive film, 1000000 cycles

Touch Sensitive Zone 1024 x 1024

Type Of Cooling natural convection

Vibration Resistance 9.8 m/sÃÂ² 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2

Width 132 mm

[Us] Rated Supply Voltage 24 V DC
