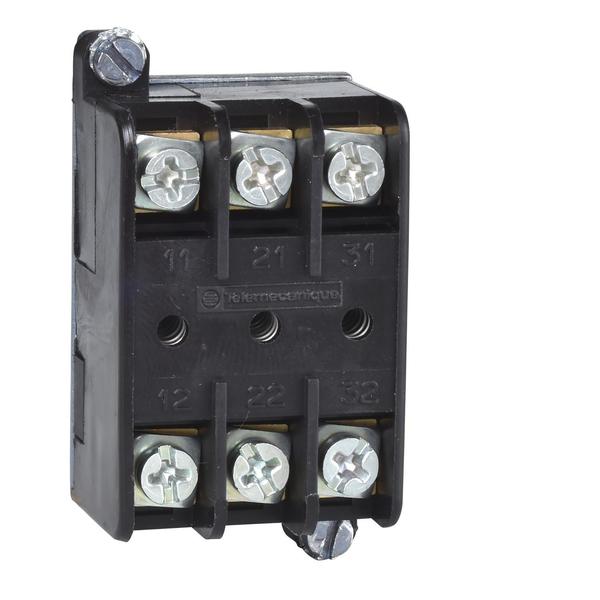

3Nc Contact Block For Xac

SKU
Brand Schneider Electric
Categories
Description 3Nc Contact Block For Xac
graingerSKU: 48P770, mscSKU: , zoro_no: G0564411, mongo_id: 65bbee31526e052139af5e6f

Web Price

$51.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Component Name XENT

Connections - Terminals screw clamp terminals, 1 x 0.5 to 1 x 2.5 mmÃÂ² without cable end || screw clamp terminals, 1 x 0.5 to 2 x 1.5 mmÃÂ² with cable end

Contact Block Application emergency stop push-button

Contact Block Type single

Contact Code Designation A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A

Contact Operation slow-break

Contacts Type And Composition 3 NC

Country of Origin (subject to change) France

Electrical Circuit Type control circuit

Electrical Shock Protection Class class II IEC 61140

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 1000000 cycles

Mounting Of Block front mounting

Operating Force 14 N

Package Quantity 1

Product Compatibility XACA

Product Or Component Type isolating switch

Rated Operational Power In W 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Shock Resistance 100 gn IEC 60068-2-27

Short-Circuit Protection 10 A fuse protection cartridge gG

Standards CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60204-32

Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage 400 V 3)IEC 60947-1
