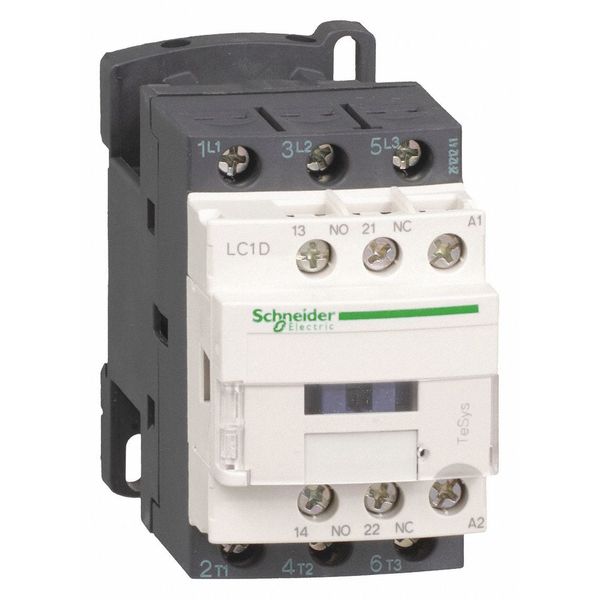

600VAC Contactor 3P 12A

SKU
Brand Schneider Electric
Categories
Description Contactor 600Vac 12Amp +Options

Web Price

$221.24 / each

Qty

Product Details

Associated Fuse Rating 10 A gG signalling circuit IEC 60947-5-1 || 40 A gG <= 690 V type 1 power circuit || 25 A gG <= 690 V type 2 power circuit

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contacts Type mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1

Average Impedance 2.5 mOhm - Ith 25 A 50 Hz power circuit

Climatic Withstand IACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat

Coil Technology built-in bidirectional peak limiting diode suppressor

Coil Volts 600VAC

Compatibility Code LC1D

Connections - Terminals power circuit screw clamp terminals 1 1-4 mmÃÂ² flexible without cable end || power circuit screw clamp terminals 2 1-4 mmÃÂ² flexible without cable end || power circuit screw clamp terminals 1 1-4 mmÃÂ² flexible with cable end || power circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible with cable end || power circuit screw clamp terminals 1 1-4 mmÃÂ² solid without cable end || power circuit screw clamp terminals 2 1-4 mmÃÂ² solid without cable end || control circuit screw clamp terminals 1 1-4 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 2 1-4 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 1 1-4 mmÃÂ² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible with cable end || control circuit screw clamp terminals 1 1-4 mmÃÂ² solid without cable end || control circuit screw clamp terminals 2 1-4 mmÃÂ² solid without cable end

Contact Compatibility M5

Contactor Application motor control || resistive load

Control Circuit Type DC low consumption

Control Circuit Voltage Limits 0.1 to 0.3 Uc -40-70ÃÂ°C drop-out DC || 0.8 to 1.25 Uc -40-60ÃÂ°C operational DC || 1 to 1.25 Uc 60-70ÃÂ°C operational DC

Country of Origin (subject to change) France

Depth 95 mm

Device Short Name LC1D

Electrical Durability 2 Mcycles 12 A AC-3 <= 440 V || 0.8 Mcycles 25 A AC-1 <= 440 V || 2 Mcycles 12 A AC-3e <= 440 V

Fire Resistance 850ÃÂ°C IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Full Load Amps 12

Height 77 mm

Hold-In Power Consumption In W 2.4-2.4 W 20ÃÂ°C

Inrush Power In W 2.4-2.4 W 20ÃÂ°C)

Insulation Resistance > 10 MOhm signalling circuit

Ip Degree Of Protection IP20 front face IEC 60529

Irms Rated Making Capacity 250 A 440 V power circuit IEC 60947 || 140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1

Maximum Horse Power Rating 0.5 hp 115 V at AC 50/60 Hz for 1 phase || 2 hp 230/240 V at AC 50/60 Hz for 1 phase || 3 hp 200/208 V at AC 50/60 Hz for 3 phase || 3 hp 230/240 V at AC 50/60 Hz for 3 phase || 7.5 hp 460/480 V at AC 50/60 Hz for 3 phase || 10 hp 575/600 V at AC 50/60 Hz for 3 phase

Maximum Operating Rate 3600 cyc/h 60ÃÂ°C

Mechanical Durability 30 Mcycles

Mechanical Robustness vibrations contactor open 2 Gn, 5 to 300 Hz) || vibrations contactor closed 4 Gn, 5 to 300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)

Minimum Switching Current 5 mA signalling circuit

Minimum Switching Voltage 17 V signalling circuit

Motor Power Kw 3 kW 220 to 230 V AC 50/60 Hz AC-3) || 5.5 kW 380 to 400 V AC 50/60 Hz AC-3) || 5.5 kW 415 to 440 V AC 50/60 Hz AC-3) || 7.5 kW 500 V AC 50/60 Hz AC-3) || 7.5 kW 660 to 690 V AC 50/60 Hz AC-3) || 3.7 kW 400 V AC 50/60 Hz AC-4) || 3 kW 220 to 230 V AC 50/60 Hz AC-3e) || 5.5 kW 380 to 400 V AC 50/60 Hz AC-3e) || 5.5 kW 415 to 440 V AC 50/60 Hz AC-3e) || 7.5 kW 500 V AC 50/60 Hz AC-3e) || 7.5 kW 660 to 690 V AC 50/60 Hz AC-3e)

Mounting Support plate || rail

Non-Overlap Time 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact

Number of Poles 3

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Operating Time 65.45 to 88.55 ms closing || 20 to 30 ms opening

Overvoltage Category III

Package Quantity 1

Permissible Ambient Air Temperature Around The Device -40-60ÃÂ°C || 60-70ÃÂ°C with derating

Pole Contact Composition 3 NO

Poles Description 3P

Pollution Degree 3

Power Dissipation Per Pole 0.36 W AC-3 || 1.56 W AC-1 || 0.36 W AC-3e

Product Certifications UL || DNV || RINA || GOST || LROS (Lloyds register of shipping) || CSA || CCC || BV || GL || UKCA

Product Or Component Type contactor

Protective Cover with

Protective Treatment THIEC 60068-2-30

Rated Breaking Capacity 250 A 440 V power circuit IEC 60947

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Signalling Circuit Frequency 25 to 400 Hz

Standards CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1

Tightening Torque power circuit 1.7 N.m screw clamp terminals flat ÃÂ 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat ÃÂ 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 1.7 N.m screw clamp terminals pozidriv No 2

Time Constant 40 ms

Utilisation Category AC-1 || AC-3 || AC-4 || AC-3e

Width 45 mm

[Icw] Rated Short-Time Withstand Current 105 A 40ÃÂ°C - 10 s power circuit || 210 A 40ÃÂ°C - 1 s power circuit || 30 A 40ÃÂ°C - 10 min power circuit || 61 A 40ÃÂ°C - 1 min power circuit || 100 A - 1 s signalling circuit || 120 A - 500 ms signalling circuit || 140 A - 100 ms signalling circuit

[Ie] Rated Operational Current 25 A 60ÃÂ°C) <= 440 V AC AC-1 power circuit || 12 A 60ÃÂ°C) <= 440 V AC AC-3 power circuit || 12 A 60ÃÂ°C) <= 440 V AC AC-3e power circuit

[Ith] Conventional Free Air Thermal Current 25 A 60ÃÂ°C power circuit || 10 A 60ÃÂ°C signalling circuit

[Uc] Control Circuit Voltage 12 V DC

[Ue] Rated Operational Voltage power circuit <= 690 V AC 25 to 400 Hz || power circuit <= 300 V DC

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947

[Ui] Rated Insulation Voltage power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
