Name: 690VAC Additional pole 1NO
Brand: Schneider Electric
SKU: G0858494
Price: 45.61 USD
Availability: InStock

Home / 690VAC Additional pole 1NO

690VAC Additional pole 1NO

SKU
Brand Schneider Electric
Categories

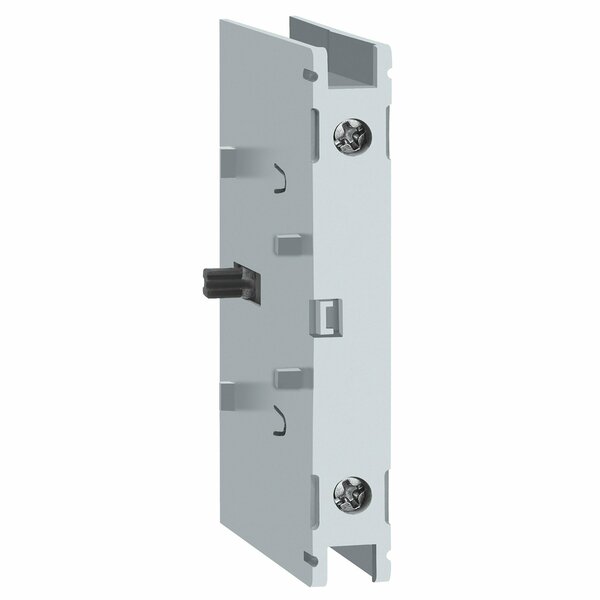

Description Additional pole, Use For Isolation, 40 Amps, Voltage 690V AC, 20 IP Rating, Number of Poles 1, Contact Form 1NO, Height 3.07 in, Width 0.47 in, Depth 1.72 in, Standards CSA C22.2 No 14, UL 508, IEC 60947-3

Web Price

$45.61 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-55ÃÂ°C

Amps 40

Breaking Capacity 60 A 690 V AC-21A) || 120 A 690 V AC-22A) || 320 A 690 V AC-23A)

Color Gray

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 16-16 mmÃÂ² flexible - without cable end

Contact Form 1NO

Contact Operation simultaneous

Contacts Type And Composition 1 NO

Conventional Free Air Thermal Current 40 A (at 131ÃÂ°F (55ÃÂ°C))

Country of Origin (subject to change) Italy

Depth 1.72 in

Device Short Name VLS1P

Electrical Durability 100000 cycles AC-21A

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Height 3.07 in

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating 20

Making Capacity 60 A 690 V AC-21A || 120 A 690 V AC-22A || 400 A 690 V AC-23A

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Location left || right

Mounting Support DIN rail

Network Frequency 50/60 Hz

Network Type AC

Number of Poles 1

Package Quantity 1

Performance Level high performance

Poles Description 1P

Product Certifications cULus || GL

Product Or Component Type additional pole

Range Compatibility TeSys (TeSys VARIO LS) VLS3P

Rated Conditional Short-Circuit Current 50 kA 400 V 40 A gG

Rated Operational Current 40 A Ue: 600 V UL 508; 40 A AC-21A Ue: 400 V; 40 A AC-21A Ue: 500 V; 40 A AC-21A Ue: 690 V; 40 A AC-22A Ue: 400 V; 40 A AC-22A Ue: 500 V; 40 A AC-22A Ue: 690 V; 40 A AC-23A Ue: 400 V; 25 A AC-23A Ue: 500 V; 25 A AC-23A Ue: 690 V

Rated Operational Power In W 18.5 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)

Standards CSA C22.2 No 14, UL 508, IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 1.8-2 N.m screw clamp terminals

Use For Isolation

Voltage 690V AC

Width 0.47 in

[Icm] Rated Short-Circuit Making Capacity 1128 A 690 V

[Icw] Rated Short-Time Withstand Current 800 A 690 V 1 s

[Ie] Rated Operational Current 40 A Ue: 600 V UL 508 || 40 A AC-21A Ue: 400 V || 40 A AC-21A Ue: 500 V || 40 A AC-21A Ue: 690 V || 40 A AC-22A Ue: 400 V || 40 A AC-22A Ue: 500 V || 40 A AC-22A Ue: 690 V || 40 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 40 A

[Ith] Conventional Free Air Thermal Current 40 A 55ÃÂ°C

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
