Home / 913A Class 10 Olr W/ Everlink Power Term

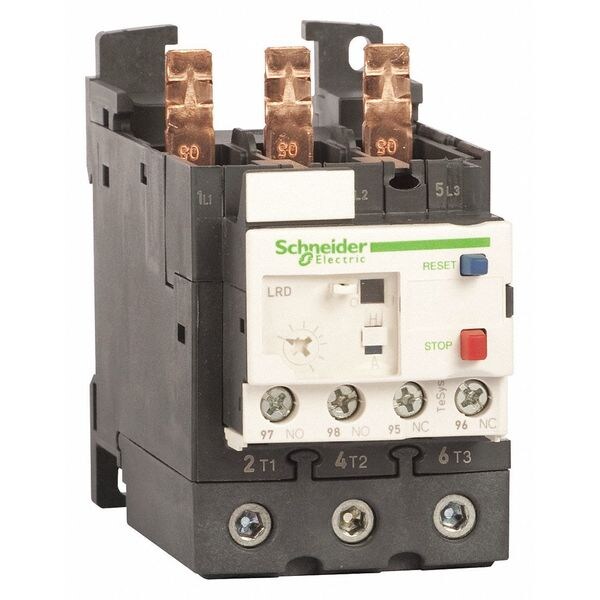

913A Class 10 Olr W/ Everlink Power Term

913A Class 10 Olr W/ Everlink Power Term

  • Schneider Electric
  • 913A Class 10 Olr W/ Everlink Power Term

    graingerSKU: 48U359, mscSKU: , zoro_no: G0862456, mongo_id: 65bbe89c22d7a989a9905250

Web Price
$157.94 / each
Qty

Product Details

-20-60°C without derating IEC 60947-4-1
-60-70°C
4 A gG signalling circuit || 4 A BS signalling circuit
1 NO + 1 NC
IACS E10
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible without cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² flexible with cable end || power circuit EverLink BTR screw connectors 1 1-35 mm² solid without cable end
Red push-button stop || Blue push-button reset
France
123 mm
LRD
1.89 kV 50 Hz IEC 60947-1
V1 conforming to UL 94
70 mm
IP20 conforming to IEC 60529
shocks15 Gn for 11 ms IEC 60068-2-7 || vibrations4 gn IEC 60068-2-6
plate, with specific accessories || rail, with specific accessories || under contactor
0 to 400 Hz
AC || DC
1
0.95 A 380 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit
tripping current 130 % of Ir on two phase, the last one at 0
IEC || UL || CSA || CCC || EAC || DNV-GL || RMRS || EU-RO MR || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
LC1D40A || LC1D50A || LC1D65A
TeSys LRD || TeSys Deca
differential thermal overload relay
TeSys || TeSys Deca
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
motor protection
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || EN 50495
-20-60°C
class 10A IEC 60947-4-1
9-13 A
control circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors
1.14 +/- 0.06 Ir IEC 60947-4-1
55 mm
5 A signalling circuit
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
6 kV
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
