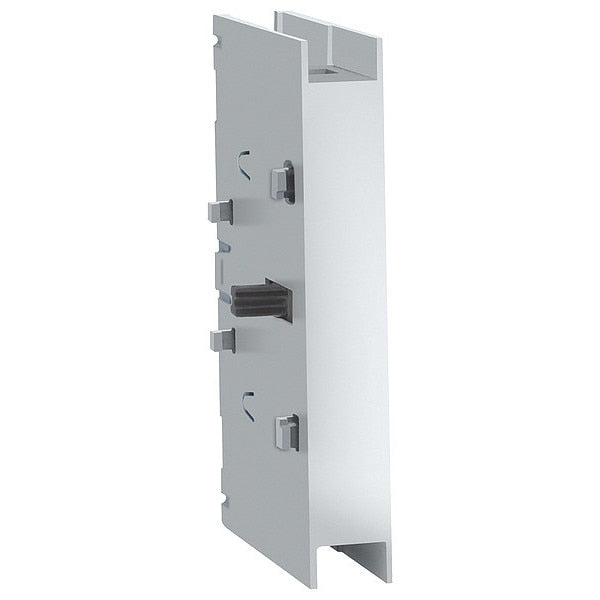

Additional pole, 40 A, 690V AC, Gray

SKU
Brand Schneider Electric
Categories
Description Additional pole, Color Gray, Compatible with Grainger Part Number 615A62, 615A64, 615A66, 615A67, Compatible with Manufacturer Model Number VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, Current Rating 40 A, Depth 1.72 in, For Use With TeSys VLS Series, Height 3.07 in, Maximum Voltage 690V AC, Mounting Mechanism Door, Product Type Additional Pole, Resistance Properties Fire-Resistant, Standards CSA C22.2 No 14, IEC 60947-3, UL 508, Width 0.47 in
graingerSKU: 55WT50, mscSKU: , zoro_no: G3203944, mongo_id: 65bbe72d3aaddbd5a907d043

Web Price

$44.44 / each

Qty

Product Details

Accessory Type Additional pole

Ambient Air Temperature For Operation -25-55ÃÂ°C

Breaking Capacity 60 A 690 V AC-21A) || 120 A 690 V AC-22A) || 320 A 690 V AC-23A)

Color Gray

Compatible Manufacturer Part Number VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1

Compatible with Manufacturer Model Number VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1

Compatible with Manufacturer Model Number [NEW] VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1

Compatible with Manufacturer Part Number VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 16-16 mmÃÂ² flexible - without cable end

Contact Operation simultaneous

Contacts Type And Composition 1 NO

Country of Origin (subject to change) Italy

Current Rating 40 A

Depth 1.72 in

Description/Special Features Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free

Device Short Name VLS1P

Door Handle Color Gray

Electrical Durability 100000 cycles AC-21A

Fire Resistance 960ÃÂ°C IEC 60695-2-11

For Use With TeSys VLS Series

Height 3.07 in

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

Making Capacity 60 A 690 V AC-21A || 120 A 690 V AC-22A || 400 A 690 V AC-23A

Max. Voltage 8 kV

Maximum Voltage 690V AC

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Location right || left

Mounting Mechanism Door

Mounting Style Door

Mounting Support door

Network Frequency 50/60 Hz

Network Type AC

Package Quantity 1

Performance Level high performance

Poles Description 1P

Product Certifications cULus || GL

Product Or Component Type additional pole

Product Type Additional Pole

Range Compatibility TeSys (TeSys VARIO LS) VLS3P

Rated Conditional Short-Circuit Current 50 kA 400 V 40 A gG

Rated Operational Power In W 18.5 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)

Resistance Properties Fire-Resistant

Standards CSA C22.2 No 14, IEC 60947-3, UL 508

Suitability For Isolation yes

Tightening Torque power circuit 1.8-2 N.m screw clamp terminals

UL 508 Certification Yes

Voltage 690V AC

Voltage Rating 690V AC

Width 0.47 in

[Icm] Rated Short-Circuit Making Capacity 1128 A 690 V

[Icw] Rated Short-Time Withstand Current 800 A 690 V 1 s

[Ie] Rated Operational Current 40 A Ue: 600 V UL 508 || 40 A AC-21A Ue: 400 V || 40 A AC-21A Ue: 500 V || 40 A AC-21A Ue: 690 V || 40 A AC-22A Ue: 400 V || 40 A AC-22A Ue: 500 V || 40 A AC-22A Ue: 690 V || 40 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 40 A

[Ith] Conventional Free Air Thermal Current 40 A 55ÃÂ°C

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
