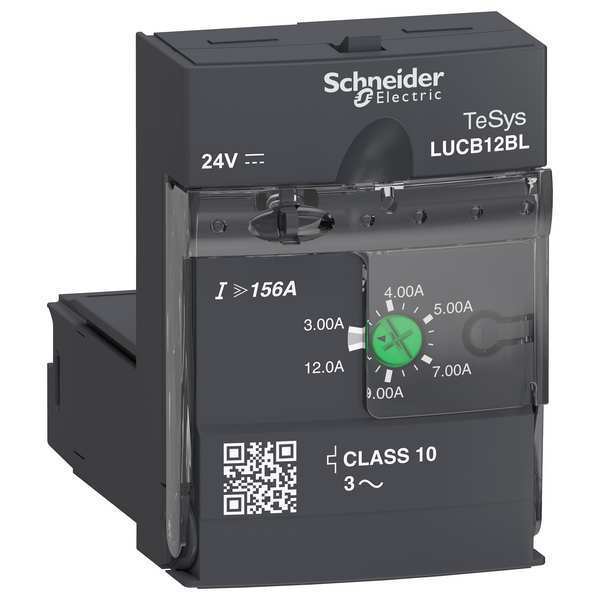

Advcntrlunitcl103Ph 312A 24Vdc, 24V DC, 3 Poles

SKU
Brand Schneider Electric
Categories
Description Overload Module, Maximum Rated Motor Current Adjustment 12 A, Minumum Rated Motor Current Adjustment 3 A, Coil Voltage 24V DC, Compatible with Series TeSys Ultra, Trip Class 10, Phase Three, Maximum Voltage Rating 690V AC, Reset Type Manual, Standards CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1, Compatible with Grainger Part Number 48P499, 48P503, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -13 Degrees F
graingerSKU: 48P492, mscSKU: 44732733, zoro_no: G0561797, mongo_id: 65bbe75d3aaddbd5a908e139

Web Price

$214.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -13 to 158ÃÂ°F (-25 to 70ÃÂ°C)

Ambient Air Temperature For Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Body Depth - Relay 2.36 in

Body Height - Relay 2.6 in

Body Width - Relay 1.77 in

Coil Voltage 24V DC

Coil Volts 24V DC

Compatibility Code LUCB

Compatible Manufacturer Part Number LUB120, LUB320, LUB380

Compatible with Manufacturer Model Number LUB120, LUB320, LUB380

Compatible with Series TeSys Ultra

Control Circuit Voltage 24 V DC

Control Circuit Voltage Limits 20 to 27 V DC 24 V in operation; 14.5 V DC 24 V drop-out

Country of Origin (subject to change) France

Depth 60 mm

Device Application Motor control; Motor protection

Features Manual reset; Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Earth fault protection; Free of Halogen, Mercury & Pvc Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration

Fire Resistance 1760ÃÂ°F (960ÃÂ°C) parts supporting live components IEC 60695-2-12; 1202ÃÂ°F (650ÃÂ°C) IEC 60695-2-12

Fixing Mode Plug-in front face)

Frame / Series / Class / Code Class 10

Heat Dissipation 2 W control circuit with LUB12; 3 W control circuit with LUB32; 3 W control circuit with LUB38

Height 66 mm

Hz_ 40 to 60 Hz

Immunity To Microbreaks 3 ms

Immunity To Radioelectric Fields 10 V IEC 61000-4-6

Immunity To Voltage Dips 70% / 500 ms IEC 61000-4-11

IP Degree Of Protection IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1

Item - Relay IEC Style Overload Relay

Kit Required for Retrofit Mtg. No

Load Type 3-phase motor self-cooled

Main Function Available Manual reset; Protection against phase failure and phase imbalance; Protection against overload and short-circuit; Earth fault protection

Maximum Operating Temperature 158 Degrees F

Maximum Rated Motor Current Adjustment 12 A

Maximum Voltage Rating 690V AC

Minimum Operating Temperature -13 Degrees F

Minumum Rated Motor Current Adjustment 3 A

Motor Power KW 5.5 kW 400 to 440 V AC 50/60 Hz; 5.5 kW 500 V AC 50/60 Hz; 9 kW 690 V AC 50/60 Hz

Number of Poles 3

Operating Altitude 6561.68 ft (2000 m)

Operating Time 35 ms opening with LUB12 control circuit; 35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 70 ms closing with LUB12 control circuit; 70 ms closing with LUB32 control circuit; 70 ms closing with LUB38 control circuit

Operating Voltage 690V AC

Overall Height - Relay 2.6 in

Overload Relay Amp Setting 3 to 12 A

Overload Relay Current Range 3 to 12A

Package Quantity 1

Phase Three

Phase Failure Sensitivity Yes

Product Certifications CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine

Product Compatibility Power base LUB12; Power base LUB32; Power base LUB38; Power base LUB120; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B12BL; Reversing contactor breaker LU2B32BL; Reversing contactor breaker LU2B38BL

Product Or Component Type Advanced control unit

Product Specific Application Basic protection and advanced functions, communication

Protective Treatment TH IEC 60068

Rated Impulse Withstand Voltage 6 kV IEC 60947-6-2

Rated Insulation Voltage 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1

Rated Operational Voltage 690 V AC

Reset Manual reset

Reset Type Manual

Reset Type - Relay Manual

Resistance To Electrostatic Discharge 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2

Resistance To Fast Transients 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4

Resistance To Radiated Fields 9.14 V/m (10 V/m) 3 IEC 61000-4-3

Safe Separation Of Circuit 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1

Sensing Method Thermal

Separate Mounting No

Shock Resistance 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27

Standards CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1

Thermal Overload Class Class 10 40 to 60 Hz -13 to 158ÃÂ°F (-25 to 70ÃÂ°C) IEC 60947-6-2; Class 10 40 to 60 Hz -13 to 158ÃÂ°F (-25 to 70ÃÂ°C) UL 508

Trip Class 10

Trip Class - Overload 10

Tripping Threshold 14.2 x Ir +/- 20%

Typical Current Consumption 130 mA 24 V DC I maximum while closing with LUB12; 220 mA 24 V DC I maximum while closing with LUB32; 220 mA 24 V DC I maximum while closing with LUB38; 60 mA 24 V DC I rms sealed with LUB12; 80 mA 24 V DC I rms sealed with LUB32; 80 mA 24 V DC I rms sealed with LUB38

Use With - Contactors and Starters Mfr. Series LUA1C Contactors

Utilisation Category AC-41; AC-43; AC-44

Vibration Resistance 2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6

Width 45 mm
