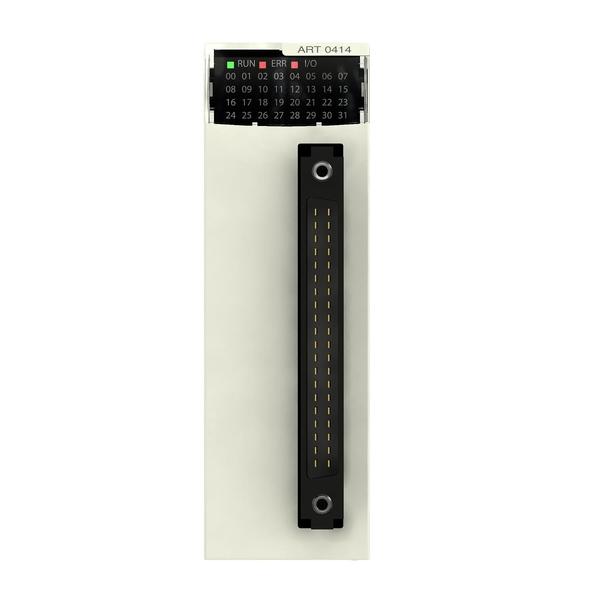

Analog input module X80-4 inputs-tem

SKU
Brand Schneider Electric
Categories
Description Analog input module X80 - 4 inputs - tem

Web Price

$1,111.24 / each

Qty

Product Details

Ambient Air Temperature For Operation 0-60 ÃÂ°C

Ambient Air Temperature For Storage -40-85 ÃÂ°C

Analog/Digital Conversion sigma delta 16 bits

Analogue Input Number 4

Analogue Input Resolution 15 bits + sign

Analogue Input Type voltage +/- 1.28 V || voltage +/- 160 mV || voltage +/- 320 mV || voltage +/- 40 mV || voltage +/- 640 mV || voltage +/- 80 mV || resistor 400 Ohm 2 wires || resistor 400 Ohm 3 wires || resistor 400 Ohm 4 wires || resistor 4000 Ohm 2 wires || resistor 4000 Ohm 3 wires || resistor 4000 Ohm 4 wires || temperature probe -100 to +260 ÃÂ°C Cu 10 || temperature probe -100 to +450 ÃÂ°C Pt 100 UL/JIS || temperature probe -100 to +450 ÃÂ°C Pt 1000 UL/JIS || temperature probe -200 to +850 ÃÂ°C Pt 100 IEC || temperature probe -200 to +850 ÃÂ°C Pt 1000 IEC || temperature probe -60 to +180 ÃÂ°C Ni 100 || temperature probe -60 to +180 ÃÂ°C Ni 1000 || thermocouple +130 to +1820 ÃÂ°C thermocouple B || thermocouple +270 to +1300 ÃÂ°C thermocouple N || thermocouple -200 to +600 ÃÂ°C thermocouple U || thermocouple -200 to +760 ÃÂ°C thermocouple J || thermocouple -200 to +900 ÃÂ°C thermocouple L || thermocouple -270 to +1000 ÃÂ°C thermocouple E || thermocouple -270 to +1370 ÃÂ°C thermocouple K || thermocouple -270 to +400 ÃÂ°C thermocouple T || thermocouple -50 to +1769 ÃÂ°C thermocouple R || thermocouple -50 to +1769 ÃÂ°C thermocouple S

Cold Junction Compensation external by Pt100 probe

Common Mode Rejection 120 dB 50/60 Hz

Country of Origin (subject to change) France

Current Consumption 150 mA 3.3 V DC || 40 mA 24 V DC

Detection Type open circuit Cu 10 || open circuit Ni 100 || open circuit Ni 1000 || open circuit Pt 100 || open circuit Pt 1000 || open circuit thermocouple B || open circuit thermocouple E || open circuit thermocouple J || open circuit thermocouple K || open circuit thermocouple L || open circuit thermocouple N || open circuit thermocouple R || open circuit thermocouple S || open circuit thermocouple T || open circuit thermocouple U

Differential Mode Rejection 60 dB 50/60 Hz

Electrical Connection 40 ways 1 connector

Height 2.1

Input Level low level

Input Output Isolation isolated

Ip Degree Of Protection IP20

Isolation Voltage 1400 V DC between channels and bus || 750 V DC between channels || 750 V DC between channels and ground

Length 4.7

Maximum Conversion Value +/- 100 % 400 Ohm || +/- 100 % 4000 Ohm || +/- 102.5 % +/- 1.28 V || +/- 102.5 % +/- 160 mV || +/- 102.5 % +/- 320 mV || +/- 102.5 % +/- 40 mV || +/- 102.5 % +/- 640 mV || +/- 102.5 % +/- 80 mV

Maximum Wiring Resistance 20 Ohm 2 wires Cu 10 || 20 Ohm 2 wires Ni 100 || 20 Ohm 2 wires Pt 100 || 20 Ohm 3 wires Cu 10 || 20 Ohm 3 wires Ni 100 || 20 Ohm 3 wires Pt 100 || 200 Ohm 2 wires Ni 1000 || 200 Ohm 2 wires Pt 1000 || 200 Ohm 3 wires Ni 1000 || 200 Ohm 3 wires Pt 1000 || 50 Ohm 4 wires Cu 10 || 50 Ohm 4 wires Ni 100 || 50 Ohm 4 wires Pt 100 || 500 Ohm 4 wires Ni 1000 || 500 Ohm 4 wires Pt 1000

Measurement Error +/- 0.7 ÃÂ°C Ni 1000 25 ÃÂ°C || +/- 1.3 ÃÂ°C Ni 1000 0 to 60 ÃÂ°C || +/- 2 ÃÂ°C Pt 100 0 to 60 ÃÂ°C || +/- 2 ÃÂ°C Pt 1000 0 to 60 ÃÂ°C || +/- 2.1 ÃÂ°C Ni 100 25 ÃÂ°C || +/- 2.1 ÃÂ°C Pt 100 25 ÃÂ°C || +/- 2.1 ÃÂ°C Pt 1000 25 ÃÂ°C || +/- 2.7 ÃÂ°C thermocouple U 25 ÃÂ°C || +/- 2.8 ÃÂ°C thermocouple J 25 ÃÂ°C || +/- 3 ÃÂ°C Ni 100 0 to 60 ÃÂ°C || +/- 3 ÃÂ°C thermocouple L 25 ÃÂ°C || +/- 3.2 ÃÂ°C thermocouple R 25 ÃÂ°C || +/- 3.2 ÃÂ°C thermocouple S 25 ÃÂ°C || +/- 3.5 ÃÂ°C thermocouple B 25 ÃÂ°C || +/- 3.7 ÃÂ°C thermocouple E 25 ÃÂ°C || +/- 3.7 ÃÂ°C thermocouple K 25 ÃÂ°C || +/- 3.7 ÃÂ°C thermocouple N 25 ÃÂ°C || +/- 3.7 ÃÂ°C thermocouple T 25 ÃÂ°C || +/- 4 ÃÂ°C Cu 10 0 to 60 ÃÂ°C || +/- 4 ÃÂ°C Cu 10 25 ÃÂ°C || +/- 4.5 ÃÂ°C thermocouple J 0 to 60 ÃÂ°C || +/- 4.5 ÃÂ°C thermocouple L 0 to 60 ÃÂ°C || +/- 4.5 ÃÂ°C thermocouple R 0 to 60 ÃÂ°C || +/- 4.5 ÃÂ°C thermocouple S 0 to 60 ÃÂ°C || +/- 4.5 ÃÂ°C thermocouple U 0 to 60 ÃÂ°C || +/- 5 ÃÂ°C thermocouple B 0 to 60 ÃÂ°C || +/- 5 ÃÂ°C thermocouple E 0 to 60 ÃÂ°C || +/- 5 ÃÂ°C thermocouple K 0 to 60 ÃÂ°C || +/- 5 ÃÂ°C thermocouple N 0 to 60 ÃÂ°C || +/- 5 ÃÂ°C thermocouple T 0 to 60 ÃÂ°C || <= 0.15 % of full scale +/- 1.28 V 0 to 60 ÃÂ°C || <= 0.15 % of full scale +/- 160 mV 0 to 60 ÃÂ°C || <= 0.15 % of full scale +/- 320 mV 0 to 60 ÃÂ°C || <= 0.15 % of full scale +/- 40 mV 0 to 60 ÃÂ°C || <= 0.15 % of full scale +/- 640 mV 0 to 60 ÃÂ°C || <= 0.15 % of full scale +/- 80 mV 0 to 60 ÃÂ°C || <= 0.2 % of full scale 400 Ohm 0 to 60 ÃÂ°C || <= 0.2 % of full scale 4000 Ohm 0 to 60 ÃÂ°C || 0.05 % of full scale +/- 1.28 V 25 ÃÂ°C || 0.05 % of full scale +/- 160 mV 25 ÃÂ°C || 0.05 % of full scale +/- 320 mV 25 ÃÂ°C || 0.05 % of full scale +/- 40 mV 25 ÃÂ°C || 0.05 % of full scale +/- 640 mV 25 ÃÂ°C || 0.05 % of full scale +/- 80 mV 25 ÃÂ°C || 0.12 % of full scale 400 Ohm 25 ÃÂ°C || 0.12 % of full scale 4000 Ohm 25 ÃÂ°C

Measurement Resolution 0.1 ÃÂ°C Cu 10 || 0.1 ÃÂ°C Ni 100 || 0.1 ÃÂ°C Ni 1000 || 0.1 ÃÂ°C Pt 100 || 0.1 ÃÂ°C Pt 1000 || 0.1 ÃÂ°C thermocouple B || 0.1 ÃÂ°C thermocouple E || 0.1 ÃÂ°C thermocouple J || 0.1 ÃÂ°C thermocouple K || 0.1 ÃÂ°C thermocouple L || 0.1 ÃÂ°C thermocouple N || 0.1 ÃÂ°C thermocouple R || 0.1 ÃÂ°C thermocouple S || 0.1 ÃÂ°C thermocouple T || 0.1 ÃÂ°C thermocouple U || 1280/2exp14 mV +/- 1.28 V || 160/2exp14 mV +/- 160 mV || 320/2exp14 mV +/- 320 mV || 40/2exp14 mV +/- 40 mV || 12.5 mOhm 400 Ohm || 125 mOhm 4000 Ohm || 640/2exp14 mV +/- 640 mV || 80/2exp14 mV +/- 80 mV

Mtbf Reliability 1400000 H

Nominal Read Cycle Time 400 ms with temperature probe || 200 ms with thermocouple

Operating Altitude 0 to 6561.68 ft (0 to 2000 m) || 2000 to 5000 m with derating factor

Package Quantity 1

Permitted Overload On Inputs +/- 7.5 V +/- 1.28 V || +/- 7.5 V +/- 160 mV || +/- 7.5 V +/- 320 mV || +/- 7.5 V +/- 40 mV || +/- 7.5 V +/- 640 mV || +/- 7.5 V +/- 80 mV

Product Certifications EAC || RCM || UL || Merchant Navy || CSA || CE

Product Or Component Type analog input module

Recalibration internal

Relative Humidity 5-95 % 55-55 ÃÂ°C without condensation

Shock Resistance 30 gn

Standards EN 61131-2 || EN 61000-6-4 || EN 61000-6-2 || EN 61010-2-201

Status Led 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O

Temperature Drift 25 ppm/ÃÂ°C 400 Ohm || 25 ppm/ÃÂ°C 4000 Ohm || 25 ppm/ÃÂ°C Ni 1000 || 25 ppm/ÃÂ°C thermocouple B || 25 ppm/ÃÂ°C thermocouple E || 25 ppm/ÃÂ°C thermocouple J || 25 ppm/ÃÂ°C thermocouple K || 25 ppm/ÃÂ°C thermocouple L || 25 ppm/ÃÂ°C thermocouple N || 25 ppm/ÃÂ°C thermocouple R || 25 ppm/ÃÂ°C thermocouple S || 25 ppm/ÃÂ°C thermocouple T || 25 ppm/ÃÂ°C thermocouple U || 30 ppm/ÃÂ°C +/- 1.28 V || 30 ppm/ÃÂ°C +/- 160 mV || 30 ppm/ÃÂ°C +/- 320 mV || 30 ppm/ÃÂ°C +/- 40 mV || 30 ppm/ÃÂ°C +/- 640 mV || 30 ppm/ÃÂ°C +/- 80 mV || 30 ppm/ÃÂ°C Cu 10 || 30 ppm/ÃÂ°C Ni 100 || 30 ppm/ÃÂ°C Pt 100 || 30 ppm/ÃÂ°C Pt 1000

Vibration Resistance 3 gn

Width 4.4
