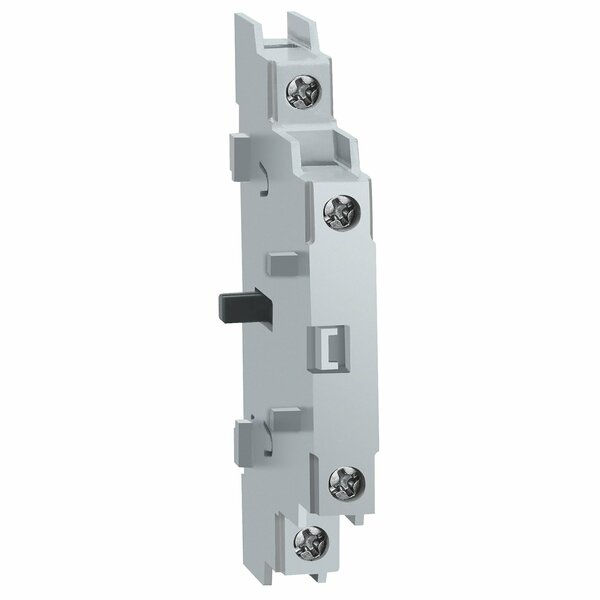

Aux Contact 1No 1Nc For Din Rail

SKU
Brand Schneider Electric
Categories
Description Auxiliary Contact, Color Gray, Compatible with Grainger Part Number 55WT61, 615A63, 615A68, Compatible with Manufacturer Model Number VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1, Current Rating 10 A, Depth 1.82 in, Duty Heavy Duty, For Use With TeSys VLS Series, Height 2.86 in, Includes 1 NO + 1 NC, Material Metal, Maximum Voltage 690V AC, Mounting Mechanism DIN Rail, Product Type Auxiliary Contact Block, Standards CSA C22.2 No 14, IEC 60947-3, IEC 60947-5, UL 508, Width 0.35 in
graingerSKU: 615A74, mscSKU: , zoro_no: G0859203, mongo_id: 65bbe76f9a749db82273a097

Web Price

$48.44 / each

Qty

Product Details

Accessory Type Auxiliary Contact

Ambient Air Temperature For Operation -25-55ÃÂ°C

Color Gray

Compatible Manufacturer Part Number VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1

Compatible with Manufacturer Model Number VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1

Compatible with Manufacturer Model Number [NEW] VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1

Compatible with Manufacturer Part Number VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1, VLS3P063D1

Connections - Terminals control circuit screw clamp terminals 2.5-2.5 mmÃÂ² flexible - without cable end

Contact Operation simultaneous 1 NC || simultaneous 1 NO

Contacts Type And Composition 1 NC + 1 NO

Country of Origin (subject to change) Italy

Current Rating 10 A

Depth 1.82 in

Description/Special Features Toxic heavy metal free, Mercury free

Device Short Name VLSA

Disconnect Switch Size 10 A

Door Handle Color Gray

Duty Heavy Duty

Fire Resistance 850ÃÂ°C IEC 60695-2-11

For Use With TeSys VLS Series

Height 2.86 in

Includes 1 NO + 1 NC

Ip Degree Of Protection IP20 conforming to IEC 60529

Material Metal

Max. Voltage 690V AC

Maximum Voltage 690V AC

Mechanical Robustness vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Minimum Output Current 10 mA

Minimum Output Voltage 5 V

Mounting Location right || left

Mounting Mechanism DIN Rail

Mounting Style DIN Rail

Mounting Support DIN rail

Network Frequency 50/60 Hz

Network Type DC || AC

Package Quantity 1

Performance Level high performance

Product Certifications cULus || GL

Product Or Component Type auxiliary contact block

Product Type Auxiliary Contact Block

Range Compatibility TeSys (TeSys VARIO LS) VLSA || TeSys (TeSys VARIO LS) VLS3P || TeSys (TeSys VARIO LS) VLS1P

Standards CSA C22.2 No 14, IEC 60947-3, IEC 60947-5, UL 508

Tightening Torque control circuit 0.8-1 N.m screw clamp terminals

UL 508 Certification Yes

Voltage 690V AC

Voltage Rating 690V AC

Width 0.35 in

[Ie] Rated Operational Current 6 A AC-15)24 V AC || 6 A AC-15)48 V AC || 6 A AC-15)127 V AC || 3 A AC-15)240 V AC || 3 A DC-13)24 V DC || 1.5 A DC-13)48 V DC || 0.55 A DC-13)127 V DC || 0.27 A DC-13)240 V DC

[Ithe] Conventional Enclosed Thermal Current 10 A

[Ith] Conventional Free Air Thermal Current 10 A 55ÃÂ°C

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
