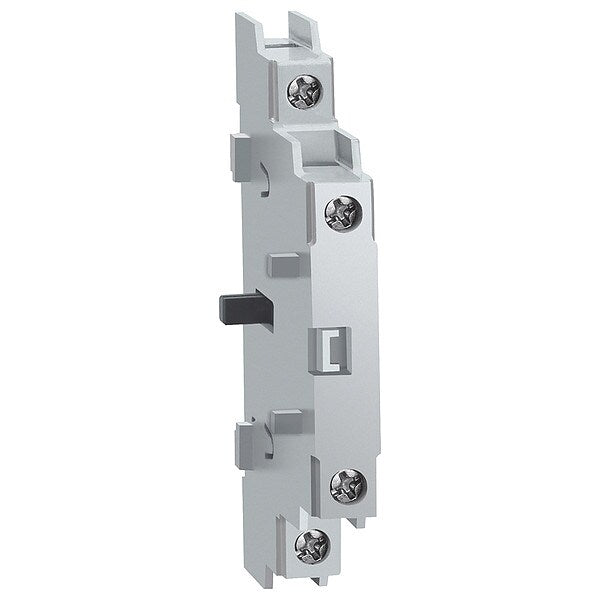

Auxiliary Contact, 10 A, 690V AC, Gray

SKU
Brand Schneider Electric
Categories
Description Auxiliary Contact, Color Gray, Compatible with Grainger Part Number 615A62, 615A64, 615A66, 615A67, 615A70, Compatible with Manufacturer Model Number VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1, Current Rating 10 A, Depth 1.82 in, For Use With TeSys VLS Series, Height 3.07 in, Includes 1 NO, Maximum Voltage 690V AC, Mounting Mechanism DIN Rail, Product Type Auxiliary Contact Block, Standards CSA C22.2 No 14, IEC 60947-1, IEC 60947-3, IEC 60947-5, UL 508, Width 0.47 in
graingerSKU: 55WT70, mscSKU: , zoro_no: G3203375, mongo_id: 65bbe86b9a749db822790212

Web Price

$49.06 / each

Qty

Product Details

Accessory Type Auxiliary Contact Block

Ambient Air Temperature For Operation -25-55ÃÂ°C

Color Gray

Compatible Manufacturer Part Number VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1

Compatible with Manufacturer Model Number VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1

Compatible with Manufacturer Model Number [NEW] VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1

Compatible with Manufacturer Part Number VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1, VLS3P063R1

Connections - Terminals control circuit screw clamp terminals 2.5-2.5 mmÃÂ² flexible - without cable end

Contact Operation early-break 1 NC

Contacts Type And Composition 1 NC

Country of Origin (subject to change) Italy

Current Rating 10 A

Depth 1.82 in

Description/Special Features Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free

Device Short Name VLSA

Door Handle Color Gray

Fire Resistance 850ÃÂ°C IEC 60695-2-11

For Use With TeSys VLS Series

Height 3.07 in

Includes 1 NO

Ip Degree Of Protection IP20 conforming to IEC 60529

Max. Voltage 8 kV

Maximum Voltage 690V AC

Mechanical Robustness vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Minimum Output Current 10 mA

Minimum Output Voltage 5 V

Mounting Location right || left

Mounting Mechanism DIN Rail

Mounting Style DIN Rail

Mounting Support DIN rail

Network Frequency 50/60 Hz

Network Type DC || AC

Package Quantity 1

Performance Level high performance

Product Certifications cULus || GL

Product Or Component Type auxiliary contact block

Product Type Auxiliary Contact Block

Range TeSys

Range Compatibility TeSys (TeSys VARIO LS) VLS3P || TeSys (TeSys VARIO LS) VLS1P

Standards CSA C22.2 No 14, IEC 60947-1, IEC 60947-3, IEC 60947-5, UL 508

Tightening Torque control circuit 0.8-1 N.m screw clamp terminals

UL 508 Certification Yes

Voltage 690V AC

Voltage Rating 690V AC

Width 0.47 in

[Ie] Rated Operational Current 6 A AC-15)24 V AC || 6 A AC-15)48 V AC || 6 A AC-15)127 V AC || 3 A AC-15)240 V AC || 3 A DC-13)24 V DC || 1.5 A DC-13)48 V DC || 0.55 A DC-13)127 V DC || 0.27 A DC-13)240 V DC

[Ithe] Conventional Enclosed Thermal Current 10 A

[Ith] Conventional Free Air Thermal Current 10 A 55ÃÂ°C

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
