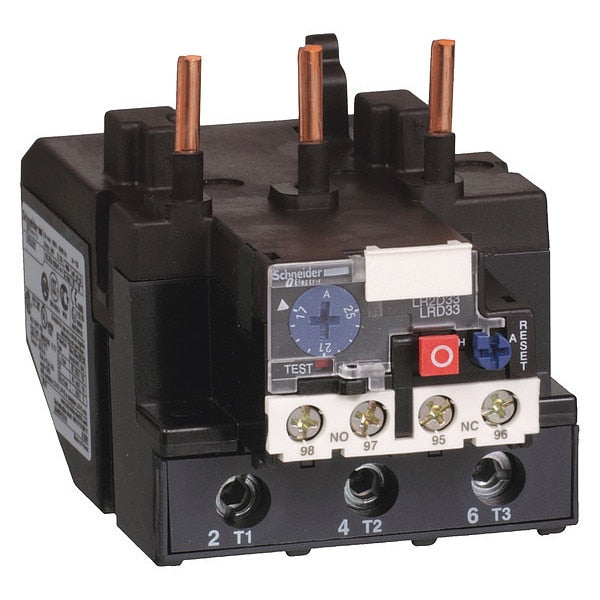

Bimetallic Overload Relay 600V 25A Iec

SKU
Brand Schneider Electric
Categories
Description Bimetallic Overload Relay 600V 25A Iec
graingerSKU: 48P892, mscSKU: , zoro_no: G0569926, mongo_id: 65bbe81b22d7a989a98da30d

Web Price

$173.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C without derating IEC 60947-4-1

Ambient Air Temperature For Storage -60-70ÃÂ°C

Associated Fuse Rating 4 A gG signalling circuit || 4 A BS signalling circuit

Auxiliary Contact Composition 1 NO + 1 NC

Climatic Withstand IACS E10

Connections - Terminals power circuit screw clamp terminals 1 4-35 mmÃÂ² flexible without cable end || power circuit screw clamp terminals 1 4-35 mmÃÂ² flexible with cable end || power circuit screw clamp terminals 1 4-35 mmÃÂ² solid without cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² solid without cable end

Control Type Red push-button stop || Blue push-button reset

Country of Origin (subject to change) France

Depth 115 mm

Device Short Name LRD

Dielectric Strength 2.2 kV 50 Hz IEC 60947-1

Flame Retardance V1 conforming to UL 94

Height 81 mm

Ip Degree Of Protection IP20 conforming to IEC 60529

Mechanical Robustness vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7

Mounting Support plate, with specific accessories || rail, with specific accessories || under contactor

Network Frequency 0 to 400 Hz

Network Type DC || AC

Package Quantity 1

Permissible Current 0.72 A 500 V AC-15 signalling circuit || 0.06 A 440 V DC-13 signalling circuit

Phase Failure Sensitivity tripping current 130 % of Ir on two phase, the last one at 0

Product Certifications IEC || UL || CSA || CCC || EAC || ATEX INERIS || UKCA

Product Compatibility LC1D80 || LC1D95

Product Name TeSys LRD || TeSys Deca

Product Or Component Type differential thermal overload relay

Range TeSys

Rated Insulation Voltage Power circuit 1000 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL

Relay Application motor protection

Standards EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495

Temperature Compensation -20-60ÃÂ°C

Thermal Overload Class class 10A IEC 60947-4-1

Thermal Protection Adjustment Range 17-25 A

Tightening Torque control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals

Tripping Threshold 1.14 +/- 0.06 Ir IEC 60947-4-1

Width 70 mm

[Ith] Conventional Free Air Thermal Current 5 A signalling circuit

[Ue] Rated Operational Voltage 1000 V AC 0 to 400 Hz power circuit IEC 60947-4-1

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1

[Ui] Rated Insulation Voltage power circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL
