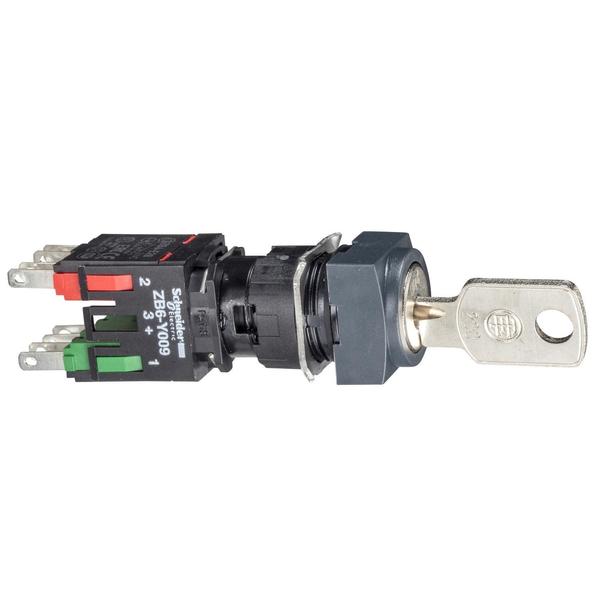

Black complete square selector switch 01

SKU
Brand Schneider Electric
Categories
Description Black complete square selector switch 01

Web Price

$87.19 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material plastic

Cad Overall Depth 80 mm

Cad Overall Height 18 mm

Cad Overall Width 18 mm

Connections - Terminals Faston connectors 2.8 x 0.5 mm

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Country of Origin (subject to change) United States

Device Short Name XB6

Electrical Durability 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Ip Degree Of Protection IP65 IEC 60529

Key Withdrawal Position in any position

Mechanical Durability 200000 cycles

Mounting Diameter 16 mm

Operating Position any position

Operator Position Information 3 positions 70ÃÂ°

Operator Profile key switch

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications CCC || CSA || UL || GOST

Product Or Component Type complete selector switch

Protective Treatment TC

Shape Of Signaling Unit Head square

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 6 A cartridge fuse gG

Standards JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C 852 || JIS C8201-1

Terminals Description Iso NÃÂ°1 (21-22)NC || (13-14)NO

Type Of Keylock Ronis 200

Type Of Operator stay put

Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1
