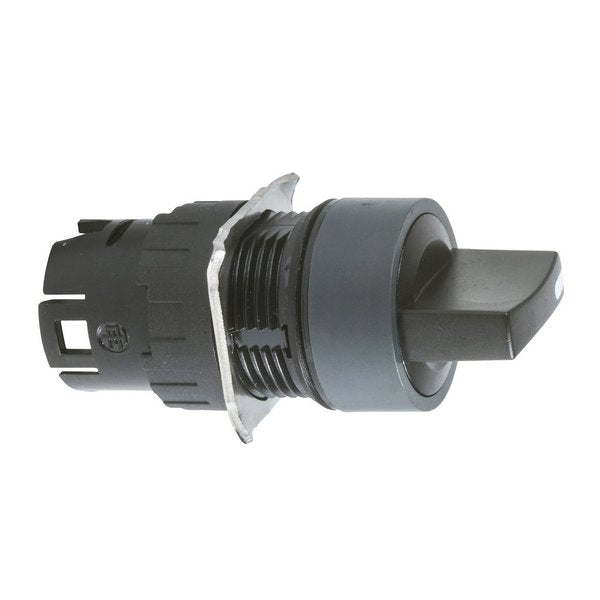

Black selector switch head 016 3-positio

SKU
Brand Schneider Electric
Categories
Description Black selector switch head 016 3-positio
graingerSKU: null, mscSKU: null, zoro_no: G3304853, mongo_id: 65bbe5d53aaddbd5a9fecdf1

Web Price

$23.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material plastic

Cad Overall Depth 43 mm

Cad Overall Height 18 mm

Cad Overall Width 18 mm

Country of Origin (subject to change) Spain

Device Short Name ZB6

Electrical Shock Protection Class class II IEC 61140

Ip Degree Of Protection IP65 IEC 60529

Mounting Diameter 16 mm

Nema Degree Of Protection NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Operator Position Information 3 positions 45ÃÂ°

Operator Profile black standard handle

Package Quantity 1

Product Certifications CCC || GOST || UL || CSA

Product Or Component Type head for selector switch

Protective Treatment TC

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards EN/IEC 60947-5-5 || JIS C 852 || UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || JIS C8201-1

Type Of Operator right to centre spring return

Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
