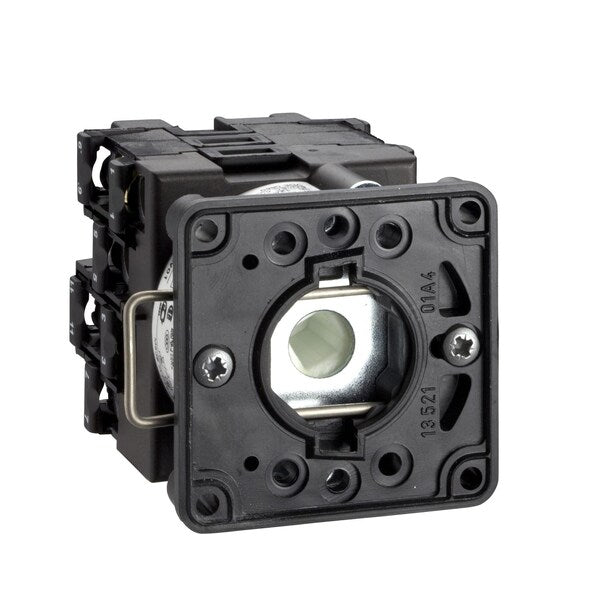

Body for stepping switch-1 pole-45 -

SKU
Brand Schneider Electric
Categories
Description Body for stepping switch - 1 pole - 45 -
graingerSKU: , mscSKU: , zoro_no: G100403616, mongo_id: 65bbe86b9a749db82278f70b

Web Price

$153.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material plastic

Cam Switch Function stepping switch

Component Name K1

Contact Operation slow-break

Country of Origin (subject to change) United States

Electrical Connection captive screw clamp terminals flexible 2 x 1.5 mmÃÂ² || captive screw clamp terminals solid 1 x 2.5 mmÃÂ²

Electrical Durability 1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3

Fixing Mode ÃÂ 22 mm hole

Maximum Operating Rate 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15

Mechanical Durability 1000000 cycles

Mounting Location front

Number Of Steps 4

Package Quantity 1

Poles Description 1P

Positive Opening with

Product Certifications CSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phase 2 || UL 240 V 1 hp 3 phase || UL 240 V 0.33 hp 1 phase 2

Product Or Component Type cam switch body

Protective Treatment TC

Rated Operational Power In W 10500 W AC-21, 500 - 660 V 3 phase IEC 947-3 || 2200 W AC-23A, 690 V 3 phase IEC 947-3 || 4800 W AC-21, 230 V 3 phase IEC 947-3 || 600 W AC-3, 230 V 1 phase IEC 947-3 || 8300 W AC-21, 400 V 3 phase IEC 947-3 || 1100 W AC-3, 230 V 3 phase IEC 947-3 || 1500 W AC-23A, 230 V 3 phase IEC 947-3 || 1500 W AC-3, 400 V 1 phase IEC 947-3 || 1500 W AC-3, 400 V 3 phase IEC 947-3 || 1500 W AC-3, 500 V 3 phase IEC 947-3 || 1500 W AC-3, 690 V 3 phase IEC 947-3 || 2200 W AC-23A, 400 V 3 phase IEC 947-3 || 2200 W AC-23A, 500 V 3 phase IEC 947-3

Shock Resistance 30 gn IEC 68-2-27

Short-Circuit Current 10000 A

Short-Circuit Protection 16 A cartridge fuse gG

Standards EN/IEC 60947-3 power circuit || EN/IEC 60947-5-1 control circuit || CENELEC EN 50013

Sub-Assembly Composition contact blocks + fixing plate

Switching Angle 45ÃÂ°

Switching Positions right: 0ÃÂ° - 45ÃÂ° - 90ÃÂ° - 135ÃÂ°

Vibration Resistance 5 gn 10-150 Hz)IEC 68-2-6

[Ie] Rated Operational Current Ac 1.8 A 690 V AC-3 3 phase IEC 947-3 || 2 A 400 V AC-15 IEC 947-5-1 || 3 A 230 V AC-15 IEC 947-5-1 || 2.8 A 500 V AC-3 3 phase IEC 947-3 || 2.8 A 690 V AC-23A 3 phase IEC 947-3 || 3.3 A 400 V AC-3 3 phase IEC 947-3 || 3.8 A 500 V AC-23A 3 phase IEC 947-3 || 4.6 A 230 V AC-3 3 phase IEC 947-3 || 4.8 A 400 V AC-23A 3 phase IEC 947-3 || 5.6 A 230 V AC-23A 3 phase IEC 947-3 || 1 A 500 V AC-15 IEC 947-5-1

[Ithe] Conventional Enclosed Thermal Current 10A

[Ith] Conventional Free Air Thermal Current 12 A

[Uimp] Rated Impulse Withstand Voltage 4 kV in isolating function || 6 kV IEC 947-1

[Ui] Rated Insulation Voltage 690 V 3)IEC 60947-1
