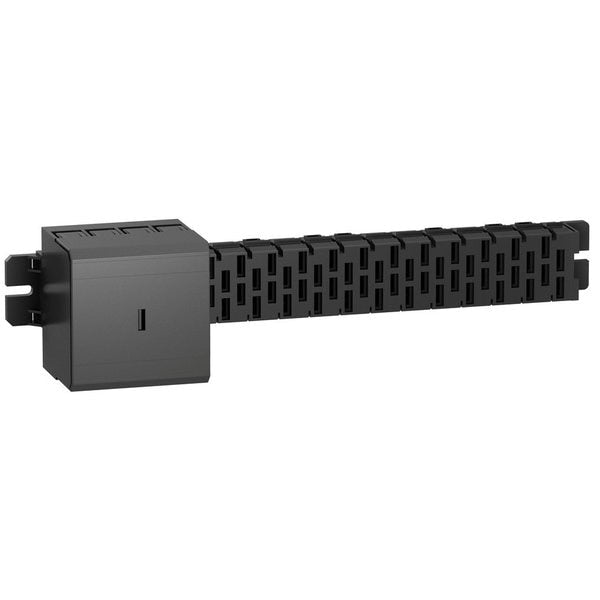

BUS BAR TRI N 160ALG988MM

SKU
Brand Schneider Electric
Categories
Description BUS BAR TRI N 160ALG988MM

Web Price

$507.49 / each

Qty

Product Details

Bar Length 992 mm

Bar Width 45 mm

Connections - Terminals connector 2.5-70 mm2ÃÂ² flexible with cable end || connector 2.5-70 mm2ÃÂ² rigid

Country of Origin (subject to change) France

Depth 82 mm

Device Application distribution

Enclosure/Cubicle Width 1200 mm

Fire Resistance 850DegC IEC 60695

Flame Retardance V0 conforming to UL 94

I2ÃÂ²T On Activation 10000000 A2ÃÂ².s

Ip Degree Of Protection IPxx B conforming to IEC 60529

Mounting Position vertical using side stop AK5BT01 on mounting plates AK5PA || horizontal

Network Frequency 50/60 Hz

Network Type AC

Number Of Conductors 4

Number Of Tap-Offs 48

Package Quantity 1

Peak Current 25 kA

Product Certifications DNV || CSA || LROS (Lloyds register of shipping) || UL

Product Name HK

Product Or Component Type busbar

Protection Type aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A || gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A

Range Linergy

Standards IEC 60439

Tightening Torque 10 N.m

Width 81 mm

[Ie] Rated Operational Current 160 A 35DegC

[Ue] Rated Operational Voltage 400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1 || 480 V off-load plugging-in and unplugging, with supply switched on)CSA || 480 V off-load plugging-in and unplugging, with supply switched on)UL || 600 V plugging-in and unplugging, with supply switched off)CSA || 600 V plugging-in and unplugging, with supply switched off)UL || 690 V plugging-in and unplugging, with supply switched off)IEC 60439-1

[Ui] Rated Insulation Voltage 600 V CSA || 600 V UL || 690 V IEC 60439-1
