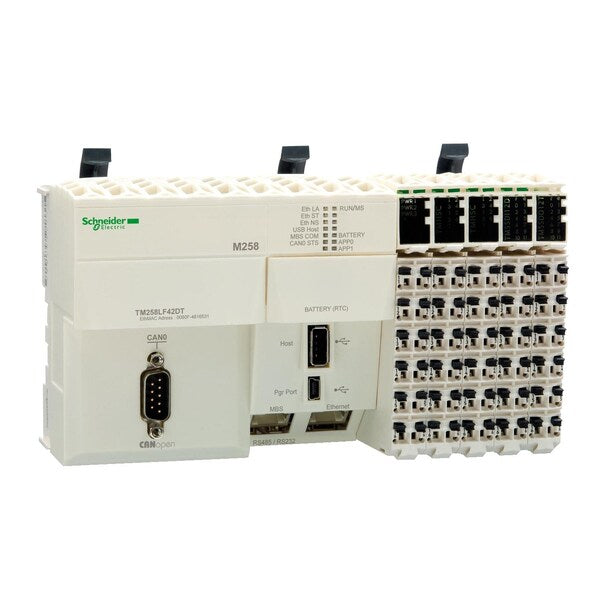

Compact base M258-42 I/O-24 V DC-C

SKU
Brand Schneider Electric
Categories
Description Compact base M258 - 42 I/O - 24 V DC - C
graingerSKU: , mscSKU: , zoro_no: G700428095, mongo_id: 65bbe89622d7a989a9901970

Web Price

$2,992.49 / each

Qty

Product Details

Ambient Air Temperature For Operation 0-55 ÃÂ°C without derating horizontal installation) || 0-60 ÃÂ°C with derating factor horizontal installation) || 0-50 ÃÂ°C vertical installation)

Ambient Air Temperature For Storage -25-70 ÃÂ°C

Anti Bounce Filtering 2 ÃÂµs to 4 ms configurable fast input/regular input and fast output

Configurable Filtering Time 0 ms fast input/regular input and fast output || 1.5 ms fast input/regular input and fast output || 12 ms fast input/regular input and fast output || 4 ms fast input/regular input and fast output

Counting Input Number 8 200 kHz

Country of Origin (subject to change) Austria

Data Backed Up variables of type retain and retain persistent CR2477M Renata, 1.5 years

Depth 85 mm

Discrete I/O Number 42

Discrete Input Current 4 mA fast input || 4 mA regular input

Discrete Input Logic sink fast input || sink regular input || source input

Discrete Input Number 10 fast input || 12 input || 4 regular input

Discrete Input Voltage 24 V

Discrete Input Voltage Type DC

Discrete Output Current 4 mA fast output

Discrete Output Logic source

Discrete Output Number 12 output || 4 fast output

Discrete Output Voltage 24 V DC

Disturbance Radiated/Conducted CISPR 11

Height 5.1

Input Impedance 6 kOhm fast input || 6 kOhm regular input

Integrated Connection Type 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300 to 115200 bps || 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX || 1 isolated serial link mini B USB 480 Mbit/s || 1 isolated serial link USB type A 480 Mbit/s || 1 CANopen male SUB-D 9 CANopen master

Ip Degree Of Protection IP20IEC 61131-2

Isolation Between Channels And Internal Logic 500 Vrms AC

Length 12.2

Line Rated Current 0.04 A embedded expert modules power || 10 A I/O power segment || 0.26 A main supply

Local Signalling 1 LED per channel I/O state || 1 LED green/yellow Eth LA (Ethernet activity) || 1 LED red BATT (battery status) || 1 LED CAN0 STS || 1 LED MBS COM || 1 LED green/red APP0 || 1 LED green/red APP1 || 1 LED green/red Eth NS (Ethernet network status) || 1 LED green/red Eth ST (Ethernet status) || 1 LED green/red RUN/MS (module status) || 1 LED green/red USB host

Marking CE

Maximum Cable Distance Between Devices <30 m fast input || <30 m fast output || <30 m regular input

Memory Description flash 128 MB || internal RAM 64 MB

Mounting Support symmetrical DIN rail

Operating Altitude 0 to 6561.68 ft (0 to 2000 m)

Output Voltage Limits 19.2 to 28.8 V

Package Quantity 1

Peak Current 100 kA <= 70 s)main supply || 25 kA <= 500 s)I/O power segment || 50 kA <= 150 s)embedded expert modules power || 1.2 A > 70 s)main supply

Pollution Degree 2 IEC 60664

Power Consumption In W 13.03 W

Product Certifications GOST-R || cULus || C-tick || CSA

Product Or Component Type logic controller

Realtime Clock without any user calibration < 30 s/month 25-25 ÃÂ°C || with user calibration <= 6 s/month

Relative Humidity 5-95 % without condensation

Resistance To Electromagnetic Fields 1 V/m 2 to 2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80 to 2000 MHz EN/IEC 61000-4-3

Resistance To Electrostatic Discharge 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2

Resistance To Fast Transients 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)

Shock Resistance 15 gn 11 ms

Standards UL 508 || CSA C22.2 No 142 || IEC 61131-2 || CSA C22.2 No 213

Storage Altitude 0-3000 m

Supply Voltage Limits 20.4-28.8 V

Surge Withstand 0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5

Transmission Rate 125 kbit/s 500-500 m CANopen || 250 kbit/s 250-250 m CANopen || 50 kbit/s 1000-1000 m CANopen || 500 kbit/s 100-100 m CANopen || 10 kbit/s 5000-5000 m CANopen || 1000 kbit/s 4-4 m CANopen || 20 kbit/s 2500-2500 m CANopen || 800 kbit/s 25-25 m CANopen

Vibration Resistance 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail

Voltage State 0 Guaranteed <= 5 V fast input || <= 5 V fast output || <= 5 V regular input

Voltage State 1 Guaranteed >= 15 V fast input || >= 15 V fast output || >= 15 V regular input

Width 6.1

[Us] Rated Supply Voltage 24 V DC embedded expert modules power || 24 V DC I/O power segment || 24 V DC main supply
