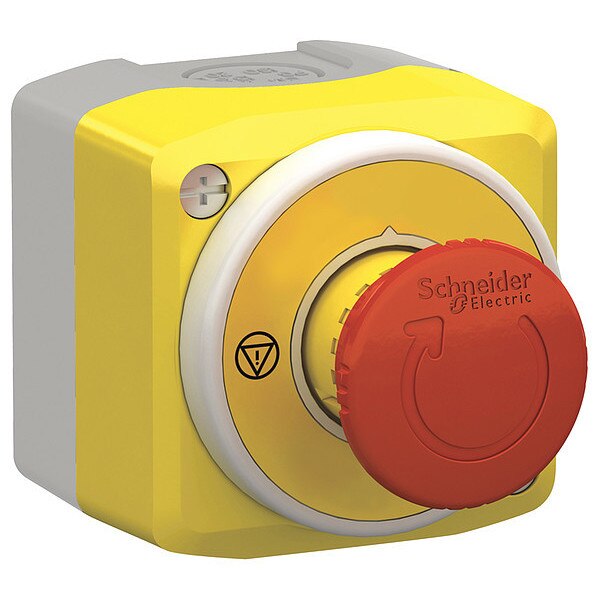

Complete Control Station, 22 mm, 1NO/1NC

SKU
Brand Schneider Electric
Categories
Description Complete Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 22 mm, Legend No Legend, Type of Operator 40mm Mushroom Head, Action Twist-to-Release, Operator Color Red, Contact Form 1NO/1NC, NEMA Rating 12, 13, 4, 4X, Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC, IP Rating 66, 67, 69, 69K, Height 2.68 in, Width 2.68 in, Depth 3.78 in, Enclosure Material Polycarbonate, Enclosure Color Light Gray and Yellow
graingerSKU: 55WZ93, mscSKU: , zoro_no: G3546287, mongo_id: 65bbe5af3aaddbd5a9fdc0da

Web Price

$233.74 / each

Qty

Product Details

Action Twist-to-Release

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Entry 1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm

Colour Of Base Of Enclosure light grey RAL 7035)

Colour Of Cover yellow RAL 1021)

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation slow-break

Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC

Contacts Material silver alloy (Ag/Ni)

Control Station Application emergency switching off function || emergency stop function

Control Station Composition 1 mushroom head ÃÂ 40 mm push-button, red 1 NO + 1 NC

Country of Origin (subject to change) Czechia

Depth 3.78 in

Device Short Name XALK

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Insulation Class class II IEC 61140

Electrical Reliability ÃÂ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4

Enclosure Color Light Gray and Yellow

Enclosure Material Polycarbonate

Height 2.68 in

Ik Degree Of Protection IK05 EN 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E

IP Rating 66, 67, 69, 69K

Lamp Module Voltage 24V AC/DC

Legend No Legend

Material polycarbonate

Mechanical Durability 300000 cycles

NEMA Rating 12, 13, 4, 4X

Number of Operators 1

Number of Pilot Lights 0

Operating Force 44 N

Operating Travel 1.5 mm NC changing electrical state) || 4.3 mm total travel)

Operator Color Red

Operator Profile 1 mushroom head push-button

Operators Description red unmarked 1 NO + 1 NC

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications UL Listed || CSA

Product Destination for XB5 ÃÂ 22 mm control and signalling units

Product Or Component Type complete control station

Protective Treatment TH

Reset turn to release

Resistance To Electrostatic Discharge 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, SA, UL 508, UL Listed

Tightening Torque 0.8-1.2 N.m EN/IEC 60947-1

Type of Operator 40mm Mushroom Head

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6

Width 2.68 in

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
