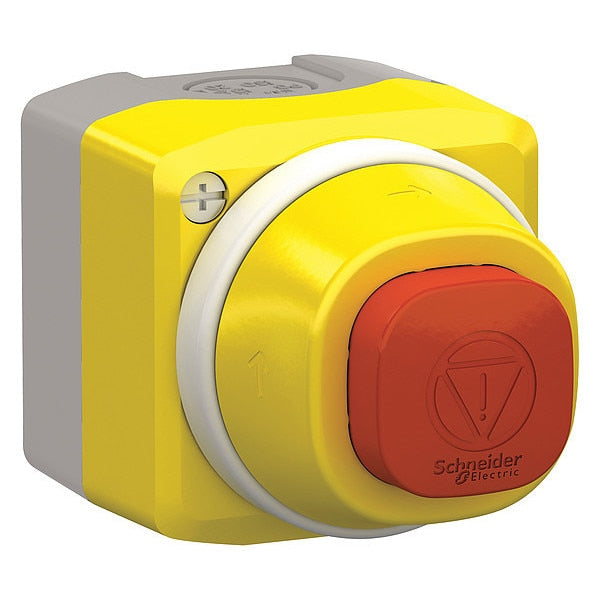

Complete Control Station, 22 mm, 1NO/1NC

Complete Control Station, 22 mm, 1NO/1NC

  • Schneider Electric
  • Complete Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 22 mm, Legend No Legend, Type of Operator 40mm Mushroom Head, Action Twist-to-Release, Operator Color Red, Contact Form 1NO/1NC, NEMA Rating 12, 13, 4, 4X, Contact Rating 0.1A @ 600 V DC, 0.27A @ 250 V DC-13, 0.55A @ 125 V DC-13, 1.2A @ 600V AC, 1A @ 120V AC, 3A @ 240V AC, IP Rating 66, 67, 69, 69K, Height 2.68 in, Width 2.68 in, Depth 3.78 in, Enclosure Material Polycarbonate, Enclosure Color Light Gray and Yellow

    graingerSKU: 55WZ95, mscSKU: , zoro_no: G3547644, mongo_id: 65bbe7283aaddbd5a9079e13

Web Price
$246.24 / each
Qty

Product Details

Twist-to-Release
-40-70°C
-40-70°C
1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
light grey RAL 7035)
yellow RAL 1021)
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
1NO/1NC
slow-break
0.1A @ 600 V DC, 0.27A @ 250 V DC-13, 0.55A @ 125 V DC-13, 1.2A @ 600V AC, 1A @ 120V AC, 3A @ 240V AC
silver alloy (Ag/Ni)
emergency switching off function || emergency stop function
1 mushroom head push-button, red 1 NO + 1 NC
Czechia
3.78 in
XALK
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
class II IEC 61140
Λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
Light Gray and Yellow
Polycarbonate
2.68 in
IK05 EN 50102
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
66, 67, 69, 69K
24V AC/DC
No Legend
polycarbonate
300000 cycles
12, 13, 4, 4X
1
0
44 N
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Red
red square 32 mm
red unmarked 1 NO + 1 NC
1
with EN/IEC 60947-5-1 appendix K
UL Listed || CSA
for XB5 Ø 22 mm control and signalling units
complete control station
TH
turn to release
4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
7000000 Pa 55°C 0.1 m
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
10 A cartridge fuse gG EN/IEC 60947-5-1
22 mm
CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, SA, UL 508, UL Listed
0.8-1.2 N.m EN/IEC 60947-1
40mm Mushroom Head
5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
2.68 in
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
10 A EN/IEC 60947-5-1
6 kV EN/IEC 60947-1
600 V 3)EN/IEC 60947-1
24 V AC/DC
