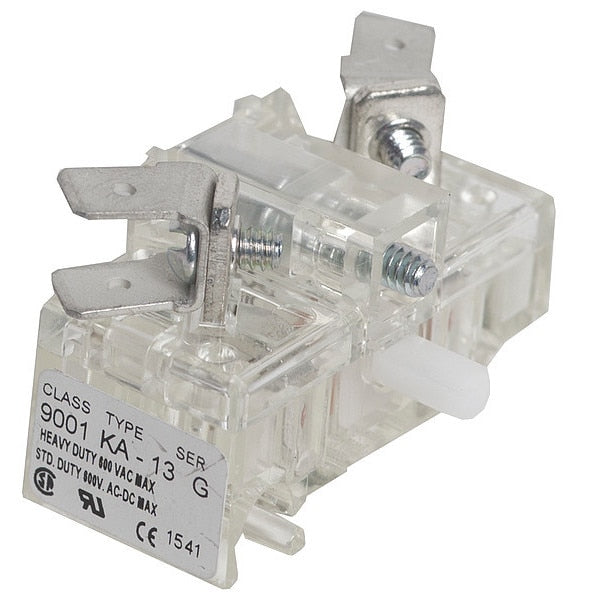

Contact Block, 1 NC Contact, 10A @ 600VAC

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1 NC, Contact Rating 10A @ 600V AC, 30 mm, Application Automotive, Crane and Hoist, Industrial Applications, Machine Tool, Material Handling, Metallurgy, Petrochemical, Wastewater Treatment, NEMA Contact Rating Designation A600/Q600, Color Silver, Terminal Connection Quick-Connect, Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508

Web Price

$46.44 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Application Automotive, Crane and Hoist, Industrial Applications, Machine Tool, Material Handling, Metallurgy, Petrochemical, Wastewater Treatment

Color Silver

Connections - Terminals Faston connector, quick-connect terminal strips

Contact Form 1 NC

Contact Operation positive opening

Contact Rating 10A @ 600V AC

Contacts Material silver alloy contacts

Contacts Type And Composition 1 NC

Country of Origin (subject to change) Mexico

Device Short Name 9001K

Electrical Shock Protection Class class II IEC 61140

Ip Degree Of Protection IP20 IEC 60529

NEMA Contact Rating Designation A600/Q600

Package Quantity 1

Positive Opening with IEC 60947-5-1

Product Certifications NEMA || UL 508

Product Or Component Type contact block

Protective Treatment TC

Rated Breaking Capacity 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Safety Rating CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Size 30 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508

Terminal Connection Quick-Connect

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13, 7200 VA || 0.27 kA 250 V DC-13, 7200 VA || 0.55 kA 125 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1

[Us] Rated Supply Voltage 0 to 600 V
