Home / Contact Block, 1 NO Contact, 250VAC

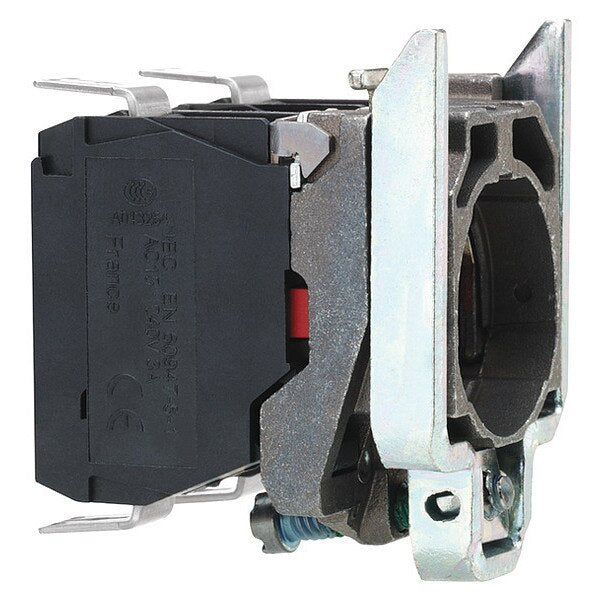

Contact Block, 1 NO Contact, 250VAC

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1 NO, Contact Rating @ 250 V AC, For Use With Flat Surface of Enclosure Type 4, 4X, 12 and 13, 22 mm, Application General Purpose, Color Silver, Terminal Connection Faston Connector, Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508, Safety Rating CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
graingerSKU: , mscSKU: , zoro_no: G3546716, mongo_id: 65bbe5af3aaddbd5a9fdc10c

Web Price

$21.94 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Application General Purpose

Cad Overall Depth 37 mm

Cad Overall Height 47 mm

Cad Overall Width 30 mm

Color Silver

Connections - Terminals Faston connector 1 x 6.35 mm || Faston connector 2 x 2.8 mm

Contact Block Type single

Contact Form 1 NO

Contact Operation slow-break

Contact Rating @ 250 V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO

Contacts Usage standard contacts

Country of Origin (subject to change) France

Device Composition body || fixing collar

Device Short Name ZB4

Electrical Durability 10000000 cycles

Electrical Reliability ÃÂ» < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Fixing Collar Material zamak

For Use With Flat Surface of Enclosure Type 4, 4X, 12 and 13

Head Type standard

Ip Degree Of Protection IP20 IEC 60529

Mechanical Durability 5000000 cycles

Operating Force 2.3 N NO changing electrical state

Operating Torque 0.05 N.m NO changing electrical state

Operating Travel 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Package Quantity 1

Positive Opening without

Product Certifications DNV || LROS (Lloyds register of shipping) || BV || CSA || UL || GL

Product Or Component Type complete body/contact assembly
