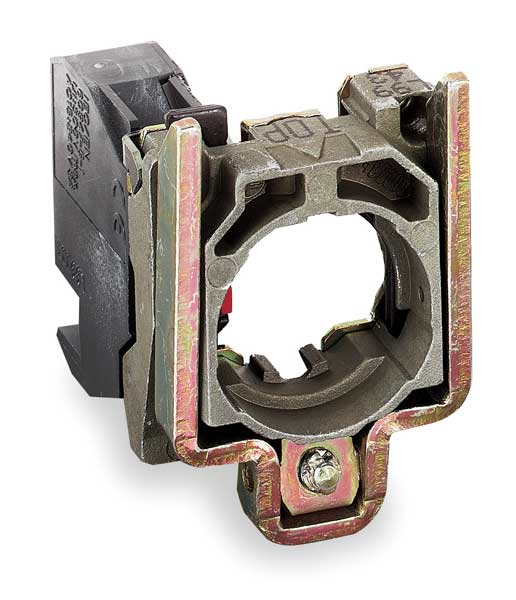

Contact Block, 1NC Slow Break, 22mm

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1NC, Contact Rating 10A @ 250V AC, For Use With Schneider ZB4 Metal Operators, Action Momentary, 22 mm, Application Operator, NEMA Contact Rating Designation A300/R300, Color Gray, Terminal Connection Plug-In Connector, Standards CSA, UL
graingerSKU: 6HR91, mscSKU: , zoro_no: G2076952, mongo_id: 65bbe8d822d7a989a991bd31

Web Price

$32.86 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Application Operator

Cad Overall Depth 37 mm

Cad Overall Height 47 mm

Cad Overall Width 30 mm

Color Gray

Connections - Terminals plug-in connector

Contact Block Type single

Contact Form 1NC

Contact Operation slow-break

Contact Rating 10A @ 250V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Device Composition body || fixing collar

Device Short Name ZB4

Electrical Durability 10000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Fixing Collar Material zamak

For Use With Schneider ZB4 Metal Operators

Head Type standard

Ip Degree Of Protection IP20 IEC 60529

Mechanical Durability 5000000 cycles

NEMA Contact Rating Designation A300/R300

Operating Force 2 N NC changing electrical state

Operating Travel 1.5 mm NC changing electrical state) || 4.3 mm total travel)

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications CSA || BV || DNV || UL || LROS (Lloyds register of shipping) || GL

Product Or Component Type complete body/contact assembly

Protective Treatment TH

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 4 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA, UL

Terminal Connection Plug-In Connector

Terminals Description Iso NÃÂ°1 (11-12)NC

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN 60947-1
