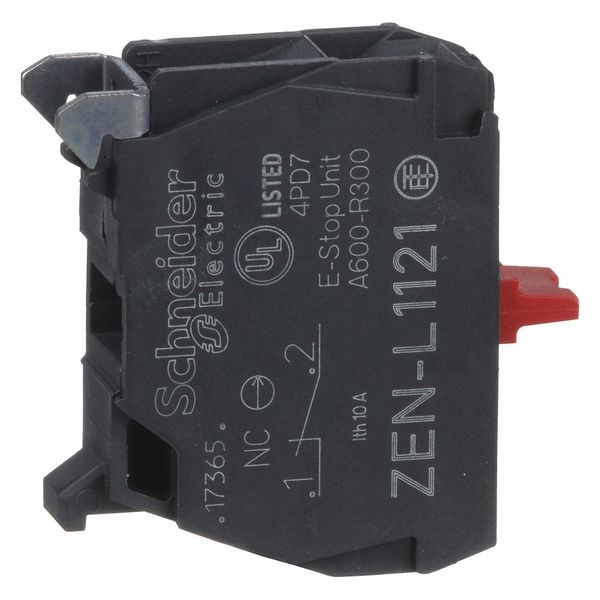

Contact Block, 1NC Slow Break, 22mm

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1NC, Contact Rating 10A @ 600V AC, For Use With Schneider Empty Enclosure, Action Momentary, 22 mm, Application Control Station, NEMA Contact Rating Designation A600/Q600, Color Black/Red, Terminal Connection Screw/Clamp, Standards CSA, UL
graingerSKU: 6JC92, mscSKU: 69675528, zoro_no: G0536067, mongo_id: 65bbea0522d7a989a998eb79

Web Price

$17.24 / each

Qty

Product Details

Action Momentary

Additional Information mounting on integrated plate in the box

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Application Control Station

Assembly Style For customer assembly

Color Black/Red

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NC

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NC

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Device Short Name ZENL

Electrical Composition Code SR1 3 ) || SR2 2 ) || MR1 2 )

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ» < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4

For Use With Schneider Empty Enclosure

Ip Degree Of Protection IP20 IEC 60529

Maximum Resistance Across Terminals 25 MOhm

Mechanical Durability 10000000 cycles

Mounting Of Block rear mounting

NEMA Contact Rating Designation A600/Q600

Operating Force 2 N NC changing electrical state

Operating Travel 1.5 mm NC changing electrical state) || 4.3 mm total travel)

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Destination for XAPS control station || for XB5 ÃÂ 22 mm control and signalling units

Product Or Component Type contact block

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA, UL

Terminal Connection Screw/Clamp

Tightening Torque 0.8-1.2 N.m EN 60947-1

Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
