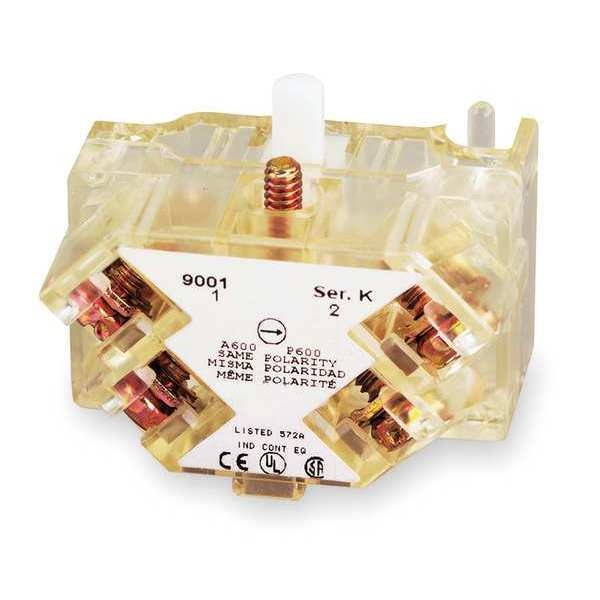

Contact Block, 1NC/1NO, 30mm

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1NC/1NO, Contact Rating 0.5A @ 120V AC, For Use With Schneider 9001K Series 30mm Operators, Action Momentary, 30 mm, Application Low Energy Circuits, NEMA Contact Rating Designation A600/Q600, Color Clear, Terminal Connection Screw/Clamp, Standards CE, CSA, UL, Safety Rating Class II Conforming to IEC 61140
graingerSKU: 2EL92, mscSKU: , zoro_no: G1470217, mongo_id: 65bbe96f22d7a989a9955339

Web Price

$112.49 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Application Automotive Chassis, Heavy Industrial Applications Where The Ptfe Additive Acts As An Additional Lubrication Barrier Against Metal-to-Metal Contact, Industrial - Machinery Tools, Overhead Garage Door Channels, Fan Motors, Slides, Gearsmarine - Cables, Couplings, Gears, Hitches, Winchesautomotive - Hinges, Electrical Antennas, Latches, Springs, Coilsresidential - Implements, Door Channels, Slides, Locksfood Service - All Areas Without Direct Food Contact.

Color clear

Connections - Terminals screw-clamp terminals, screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÃÂ² IEC 60947-1

Contact Form 1NC/1NO

Contact Operation logic reed || hermetically sealed

Contact Rating 0.5A @ 120V AC

Contacts Type And Composition 1 C/O

Contacts Usage hermetically sealed contacts

Conventional Free Air Thermal Current 10 A

Country of Origin (subject to change) Multiple

Device Short Name 9001K

Electrical Shock Protection Class class II IEC 61140

For Use With Schneider 9001K Series 30mm Operators

Ip Degree Of Protection IP20 IEC 60529

NEMA Contact Rating Designation A600/Q600

Package Quantity 1

Positive Opening without

Product Certifications UL 508 || NEMA

Product Or Component Type contact block

Protective Treatment TC

Rated Breaking Capacity 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA; 0.55 A 125 V, DC-13, A600-Q600 NEMA

Rated Short Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA; 0.55 kA 125 V DC-13; 0.1 kA 600 V DC-13; 0.27 kA 250 V DC-13

Safety Rating Class II Conforming to IEC 61140

Shape Of Screw Head cross slotted

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Terminal Connection Screw/Clamp

Tightening Torque 0.8-0.8 N.m IEC 60947-1

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1

[Us] Rated Supply Voltage 120 V
