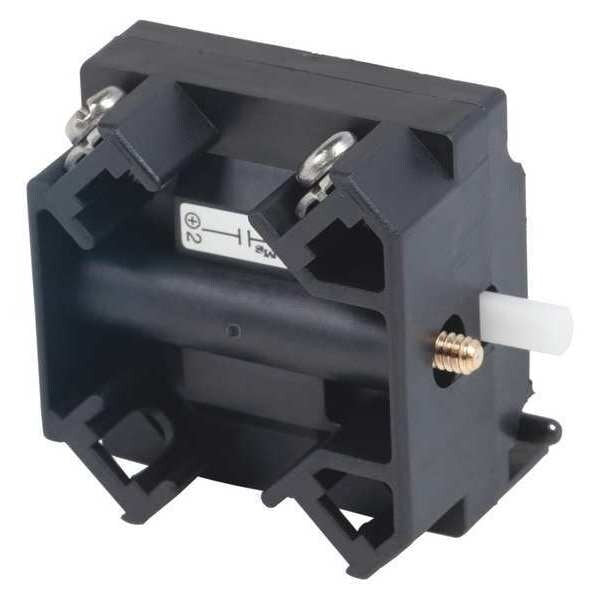

Contact Block, 1NO, 30mm

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1NO, Contact Rating 0.5A @ 120V AC, For Use With Schneider 9001K Series 30mm Operators, Action Momentary, 30 mm, Application Low Energy Circuits, NEMA Contact Rating Designation A600/Q600, Terminal Connection Screw/Clamp, Standards CE, CSA, UL, Safety Rating Class II Conforming to IEC 60536
graingerSKU: 2EL93, mscSKU: , zoro_no: G7624102, mongo_id: 65bbe8669a749db82278cf91

Web Price

$57.11 / each

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Application Low Energy Circuits

Connections - Terminals screw-clamp terminals, screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÃÂ² IEC 60947-1

Contact Form 1NO

Contact Operation logic reed || hermetically sealed

Contact Rating 0.5A @ 120V AC

Contacts Type And Composition 1 NO

Contacts Usage hermetically sealed contacts

Country of Origin (subject to change) Japan

Device Short Name 9001K

Electrical Shock Protection Class class II IEC 61140

For Use With Schneider 9001K Series 30mm Operators

NEMA Contact Rating Designation A600/Q600

Package Quantity 1

Positive Opening with IEC 60947-5-2

Product Certifications NEMA || UL 508

Product Or Component Type contact block

Protective Treatment TC

Rated Breaking Capacity 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13

Safety Rating Class II Conforming to IEC 60536

Shape Of Screw Head cross slotted

Shock Resistance 50 gn IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse IEC 60947-5-1

Size 30 mm

Standards CE, CSA, UL

Terminal Connection Screw/Clamp

Tightening Torque 0.8-0.8 N.m IEC 60947-1

Vibration Resistance 7 gn 2-500 Hz)IEC 60068-2-6

[Icm] Rated Short-Circuit Making Capacity 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA

[Ith] Conventional Free Air Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)IEC 60947-1

[Us] Rated Supply Voltage 120 V
