Home / Contact Block, 1NO Slow Break, 22mm

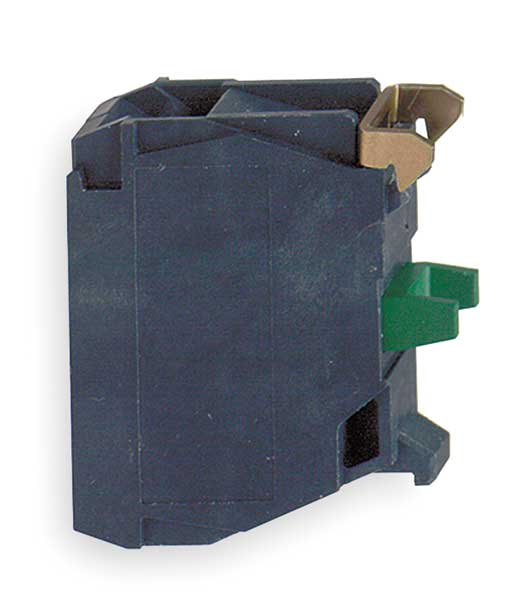

Contact Block, 1NO Slow Break, 22mm

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1NO, Contact Rating 10A @ 600V AC, For Use With Chrome, Plastic Operators (ZB4 or ZB5 Operators), Action Momentary, 22 mm, Application Operator, NEMA Contact Rating Designation A600/Q600, Color Black/Green, Terminal Connection Screw/Clamp, Standards CSA, UL
graingerSKU: 6HZ08, mscSKU: , zoro_no: G4077972, mongo_id: 65bbe76a9a749db822736f69

Web Price

$42.31 / each

Product Details

Action Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Application Operator

Color Black/Green

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN 60947-1

Contact Block Type single

Contact Form 1NO

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contacts Material gold flashed (Ag/Ni/Au) contacts

Contacts Type And Composition 1 NO

Contacts Usage low power switching contacts

Country of Origin (subject to change) France

Device Short Name ZBE

Electrical Composition Code C1 9 ) || C2 7 ) || C3 6 ) || C4 4 ) || C5 5 ) || C6 3 ) || C7 4 ) || C8 2 ) || C9 3 ) || C12 6 ) || M1 6 ) || M2 4 ) || M3 4 ) || M5 2 ) || M6 2 ) || M7 6 ) || M8 4 ) || M9 2 ) || SF1 3 ) || SF2 2 ) || MF1 2 ) || MF2 2 ) || C10 2 ) || M4 2 ) || C13 1 )

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

For Use With Chrome, Plastic Operators (ZB4 or ZB5 Operators)

Ip Degree Of Protection IP20 IEC 60529

Mechanical Durability 10000000 cycles

Mounting Of Block front mounting

NEMA Contact Rating Designation A600/Q600

Operating Force 2.3 N NO changing electrical state

Operating Travel 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Package Quantity 1

Positive Opening without

Product Certifications CCC || DNV || GL || UL || CSA || LROS (Lloyds register of shipping) || BV || GOST

Product Or Component Type contact block

Protective Treatment TH

Shape Of Screw Head cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Size 22 mm

Standards CSA, UL

Terminal Connection Screw/Clamp

Tightening Torque 0.8-1.2 N.m EN 60947-1

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
