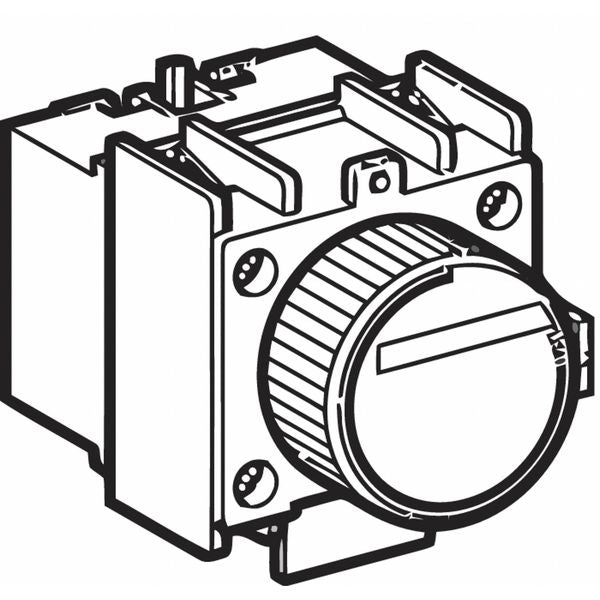

Contactor Time Delay Auxcontact Block

Contactor Time Delay Auxcontact Block

  • Schneider Electric
  • Contactor Time Delay Auxcontact Block

    graingerSKU: null, mscSKU: null, zoro_no: G0653348, mongo_id: 65bbe5bb3aaddbd5a9fe1fb0

Web Price
$194.99 / each
Qty

Product Details

Contactor Time Delay Auxcontact Block
-40-70°C
-60-80°C
time delay
dark grey
screw clamp terminals 1 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-2.5 mm²flexible without cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible without cable end || screw clamp terminals 1 1-2.5 mm²rigid || screw clamp terminals 2 1-2.5 mm²rigid || screw clamp terminals
10 A (at 140°F (60°C))
France
61 mm
star delta starter
normal environment
48 mm
> 10 MOhm
IP20 conforming to IEC 60529
140 A <= 690 V AC IEC 60947-5-1 || 250 A <= 690 V DC IEC 60947-5-1
5 Mcycles
5 mA
17 V
front
1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
9842.52 ft (3000 m)
1
100 A 60°C 1 s || 120 A 60°C 500 ms || 140 A 60°C 100 ms
1 NO + 1 NC
IECEE CB Scheme || UL || CSA || CCC || EAC || UKCA
TeSys Deca
time delay auxiliary contact block
gG fuse 10 A
TH IEC 60068
TeSys || TeSys Deca
TeSys D CAD || TeSys D LC1D || TeSys F LC1F || TeSys F CR1F || TeSys Deca CAD || TeSys Deca LC1D
690 V IEC 60947-5-1; 600 V UL 60947-5-1; 600 V CSA C22.2 No 60947-5-1
6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13
690 V AC 25 to 400 Hz
CSA C22.2 No 60947-5-1 || GB/T 14048.5 || EN/IEC 60947-5-1
1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2
1...30 s
on delay
44 mm
6 A120 V AC-15 || 1.04 A690 V AC-15 || 0.55 A125 V DC-13 || 0.1 A600 V DC-13
10 A 60°C
690 V AC 25...400 Hz
690 V IEC 60947-5-1 || 600 V UL 60947-5-1 || 600 V CSA C22.2 No 60947-5-1
