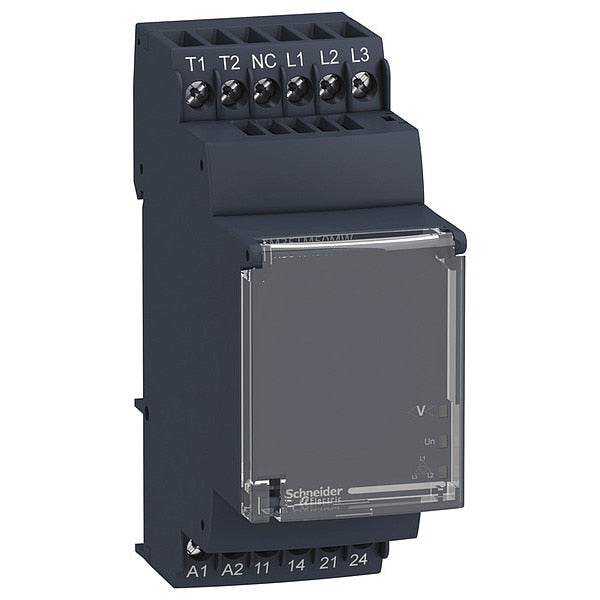

Control Relay, 12 Pins, 24 to 240V AC/DC

SKU
Brand Schneider Electric
Categories
Description Control Relay, Base Shape Square, Contact Form DPDT, Contact Rating (AC) 5 A @ 250V, Contact Rating (DC) 5 A @ 250V, Current Rating 5 A, Flat Pin Width Not Applicable, Input Voltage 24 to 240V AC/DC, Monitored Parameters Overtemperature, Phase Failure, Phase Sequence, Undertemperature, Number of Pins 12, Restart Auto, Restart Time Delay 1.5 sec, IP Rating IP30, Mounting Style DIN Rail, Body Depth 2.84 in, Body Height 3.54 in, Body Width 1.38 in, Electrical Operating Durability 100,000
graingerSKU: , mscSKU: , zoro_no: G3466146, mongo_id: 65bbe96a22d7a989a9952c6d

Web Price

$308.74 / each

Qty

Product Details

AC Contact Rating - Relay 5A @ 250V

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Base Shape Square

Body Depth 2.84 in

Body Depth - Relay 2.84 in

Body Height 3.54 in

Body Height - Relay 3.54 in

Body Width 1.38 in

Body Width - Relay 1.38 in

Connections - Terminals screw terminals, 1 x 0.5...1 x 4 mmÃÂ² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contact Form DPDT

Contact Rating (AC) 5 A @ 250V

Contact Rating (DC) 5 A @ 250V

Contacts Type And Composition 2 NO

Control Circuit Frequency 50...60 Hz +/- 10 %

Country of Origin (subject to change) Indonesia

Current Rating 5 A

Dielectric Test Voltage 2 kV AC 50 Hz, 1 min

Electrical Connection Type Screw

Electrical Durability 10000 cycles

Electrical Operating Durability 100,000

Electromagnetic Compatibility emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments EN/IEC 61000-6-2

Flat Pin Width Not Applicable

Frequency 50/60 Hz

Housing Material Plastic

Immunity To Microbreaks 20 ms 20.4 V

Input Voltage 24 to 240V AC/DC

Insulation Resistance > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

IP Rating IP30

Item - Relay Phase Monitor Relay

Local Signalling for power ON LED (green) || for phase of relay (R2) LED (yellow) || for temperature of relay (R1) LED (yellow)

Marking CE

Maximum Operating Temperature 122 Degrees F

Maximum Power Consumption In W 0.5 W DC

Maximum Resistance 1500 Ohm temperature sensor 20ÃÂ°C

Maximum Switching Capacity 1,250 VA

Maximum Switching Current 5 A

Maximum Switching Voltage 250V AC/DC

Measurement Range 208...480 V voltage AC || 0...20 Ohm short-circuit detection

Measurement Voltage Limits 176-528 V AC

Mechanical Durability 30000000 cycles

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -4 Degrees F

Minimum Switching Current 10 mA

Monitored Parameters Overtemperature, Phase Failure, Phase Sequence, Undertemperature

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Mounting Support 35 mm symmetrical DIN rail conforming to EN/IEC 60715

Nominal Output Current 5A

Non-Dissipating Shock Wave 4 kV

Number of Pins 12

Number of Pins - Relay 6

Operating Position any position without derating

Operating Rate <= 360 operations/hour full load

Output Contacts 2 NO

Overall Depth 2.84 in

Overall Height - Relay 3.54 in

Overvoltage Category III IEC 60664-1

Package Quantity 1

Phase Loss Sensitivity Yes

Pollution Degree 3 IEC 60664-1

Power Consumption 1,250 VA

Power Consumption In Va 0-4 VA 24...240 V AC

Product Certifications GL || UL || GOST || C-tick || CSA

Product Or Component Type 3-phase control relay

Product Specific Application for 3-phase supply

Relative Humidity 95-95 % 55-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters phase sequence || motor temperature via PTC probe || phase failure detection

Relay Mounting Style DIN-Rail

Relay Name RM35TM

Relay Type motor temperature control relay

Reset Threshold 1650 Ohm +/- 10 % temperature control circuit

Reset Time 10000 ms output

Resistance Across Terminals 602 mOhm

Response Time > 50 ms (input Y1 (contact Y1-T1) and push-button)

Restart Auto

Restart Time Delay 1.5 sec

Run-Up Delay At Power-Up 500 ms

Shock Resistance 15 gn 11 ms IEC 60255-21-1

Short-Circuit Current 0.007 A temperature sensing circuit T1-T2 terminals short circuited)

Socket Code Configurator DIN-Rail / Square / 12

Standards C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed

Supply Frequency 50/60 Hz +/- 10 %

Supply Voltage Limits 20.4-264 V AC || 20.4-264 V DC

Switching Capacity In Va 1250 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type fixed 0.3 s

Tripping Threshold 3100 Ohm +/- 10 % temperature control circuit

Utilisation Category AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1

Vibration Resistance 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1

Voltage Range 176...528 V

Weight 4.64 oz

Width 35 mm

[Uc] Control Circuit Voltage 24...240 V, <= 3.6 V temperature control circuit T1-T2 terminals open)

[Ui] Rated Insulation Voltage 400 V IEC 60664-1
