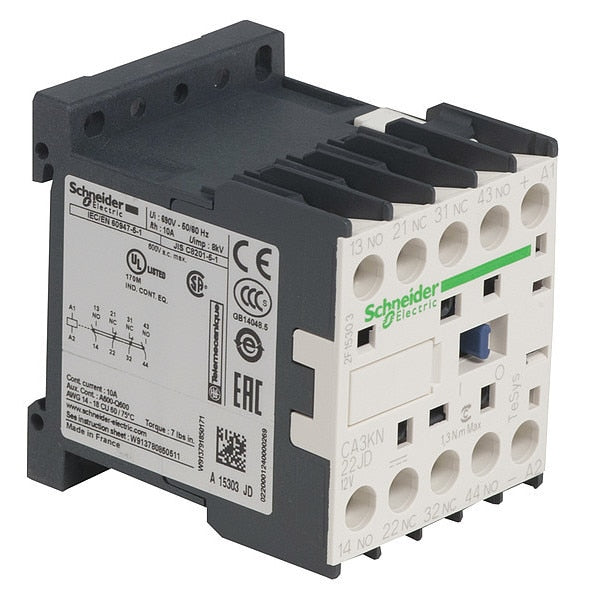

Control Relay 12VDC 10Amp Iec +Options

SKU
Brand Schneider Electric
Categories
Description Control Relay 12VDC 10Amp Iec +Options
graingerSKU: , mscSKU: , zoro_no: G0570057, mongo_id: 65bbe9d422d7a989a997df30

Web Price

$76.44 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-50ÃÂ°C

Ambient Air Temperature For Storage -50-80ÃÂ°C

Associated Fuse Rating 10 A gG IEC 60947 || 10 A gG VDE 0660

Connections - Terminals screw clamp terminals 1 1.5-4 mmÃÂ²solid || screw clamp terminals 2 1.5-4 mmÃÂ²solid || screw clamp terminals 1 0.75-4 mmÃÂ²flexible with cable end || screw clamp terminals 2 0.75-4 mmÃÂ²flexible without cable end || screw clamp terminals 1 0.34-1.5 mmÃÂ²flexible with cable end || screw clamp terminals 2 0.34-1.5 mmÃÂ²flexible without cable end

Contactor Application control circuit

Control Circuit Type DC standard

Control Circuit Voltage Limits operational 0.8 to 1.15 Uc 50ÃÂ°C) || drop-out 0.1 to 0.75 Uc 50ÃÂ°C)

Country of Origin (subject to change) France

Depth 57 mm

Device Short Name CA3K

Flame Retardance V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Heat Dissipation 3-3 W

Height 58 mm

Hold-In Power Consumption In W 3-3 W 20ÃÂ°C

Immunity To Microbreaks 2 ms

Inrush Power In W 3-3 W 20ÃÂ°C)

Insulation Resistance > 10 MOhm

Ip Degree Of Protection IP2X

Irms Rated Making Capacity 110 A IEC 60947

Maximum Operating Rate 10000 cyc/h

Mechanical Durability 20 Mcycles

Mechanical Robustness vibrations contactor open2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27

Minimum Switching Current 5 mA

Minimum Switching Voltage 17 V

Mounting Support rail || plate

Non Overlap Distance 0.5 mm

Operating Altitude 6561.68 ft (2000 m) without derating

Operating Time 10 ms coil de-energisation and NO opening || 30 to 40 ms coil energisation and NO closing || 15 ms coil de-energisation and NC closing || 25 to 35 ms coil energisation and NC opening

Package Quantity 1

Pole Contact Composition 2 NO + 2 NC

Product Certifications CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Product Name TeSys CAK

Product Or Component Type control relay

Protective Treatment TC IEC 60068

Range TeSys

Standards EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1

Tightening Torque 1.3 N.m screw clamp terminals flat ÃÂ 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2

Utilisation Category DC-13 || AC-15

Width 45 mm

[Ith] Conventional Free Air Thermal Current 10 A 50ÃÂ°C

[Uc] Control Circuit Voltage 12 V DC

[Ue] Rated Operational Voltage <= 690 V <= 400 Hz

[Ui] Rated Insulation Voltage 690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
