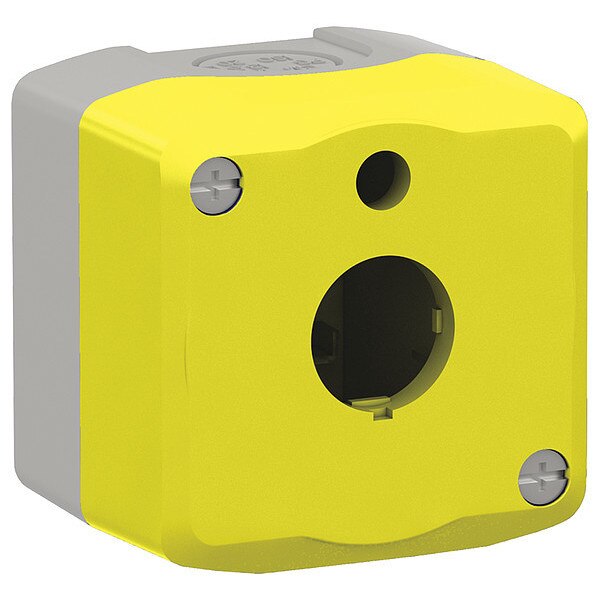

Home / Control Station Enclosure, 2.68"H, 2.68" W

Control Station Enclosure, 2.68"H, 2.68" W

SKU
Brand Schneider Electric
Categories
Description Control Station Enclosure, Number of Columns 1, Number of Holes 1, NEMA Rating 13, 4, 4X, Dimensions 2.68 in H x 2.68 in W x 2.09 in D, Material Polycarbonate, Height 2.68 in, Width 2.68 in, Depth 2.09 in, Color Yellow, Light Gray, Type Control Station, For Use With Illuminated E-Stop, Mounting Style Front Mounting, Rear Mounting, Standards EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1
graingerSKU: 55WZ97, mscSKU: , zoro_no: G3604317, mongo_id: 65bbe8d822d7a989a991b7b8

Web Price

$39.36 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Entry 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm

Cad Overall Depth 53 mm

Cad Overall Height 68 mm

Cad Overall Width 68 mm

Color Yellow, Light Gray

Colour Of Base Of Enclosure light grey RAL 7035)

Colour Of Cover yellow RAL 1021)

Control Station Application emergency stop function || emergency switching off function

Country of Origin (subject to change) Czechia

Depth 2.09 in

Device Short Name XALK

Dimensions 2.68 in H x 2.68 in W x 2.09 in D

Electrical Composition Code SR1 || SF1 || MR1 || MF1

For Use With Illuminated E-Stop

Group Of Product standard yellow

Height 2.68 in

Ik Degree Of Protection IK05 EN 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E

Main Group 1 cut-out

Material Polycarbonate

Mounting Of Block front mounting || rear mounting

Mounting Style Front Mounting, Rear Mounting

NEMA Rating 13, 4, 4X

Number of Columns 1

Number Of Cut-Out 1 cut-out

Number Of Horizontal Rows 1

Number Of Vertical Rows 1

Overvoltage Category class II IEC 60536

Package Quantity 1

Product Destination for XB5 ÃÂ 22 mm control and signalling units
