Home / Controller, 100 to 240VAC

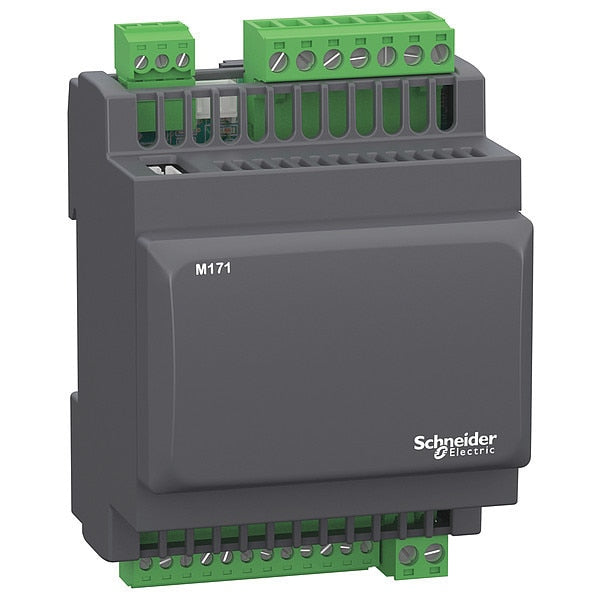

Controller, 100 to 240VAC

SKU
Brand Schneider Electric
Categories
Description Controller, Input Voltage 100 to 240V AC, Output Type Analog, Relay, 2 A Amps, 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link Slots, Timers Programmable, No Display Display, Port Type 1 LAN Expansion Bus, 1 RS485

Web Price

$281.24 / each

Qty

Product Details

Amps 2 A

Analogue Input Number 2 configurable || 3 analog input NTC

Analogue Input Type NTC temperature probe - 50 to 100 ÃÂ°C 0.1 ÃÂ°C || Pt 1000 temperature probe - 50 to 400 ÃÂ°C 0.1 ÃÂ°C || current 0 to 20 mA/4 to 20 mA || voltage 0 to 1 V || voltage 0 to 10 V ratiometric) || voltage 0 to 5 V

Analogue Output Number 2 voltage 0 to 10 V || 2 PWM/PPM 20 kHz, 12 V, 35 mA || 1 current 0 to 20 mA/4 to 20 mA

Contacts Usage volt-free contacts

Country of Origin (subject to change) Italy

Depth 2.43 in

Description/Special Features Modicon M171 Optimized Blind 14 I/Os Modbus 100-240Vac, product specific application HVAC and pumping solution, contacts usage Volt-free contacts, Discount Schedule PC12, Environmental Disclosure Product Environmental Profile, mounting support DIN rail, relative humidity 10ÃÂ¿90 % non-condensing

Discrete Input Logic sink or source (positive/negative)

Discrete Input Number 2

Discrete Output Current 2 A relay

Discrete Output Number 1 relay outputs SPDT with independent common || 3 relay outputs SPST with same common

Display No Display

Height 3.43 in

Input Voltage 100 to 240V AC

Input/Output Number 5 analog output || 4 digital output || 5 analog input

Number of Inputs/Outputs 14

Number Of Port 1 LAN expansion bus || 1 RS485 - screw terminal block Modbus serial link)

Output Type Analog, Relay

Package Quantity 1
