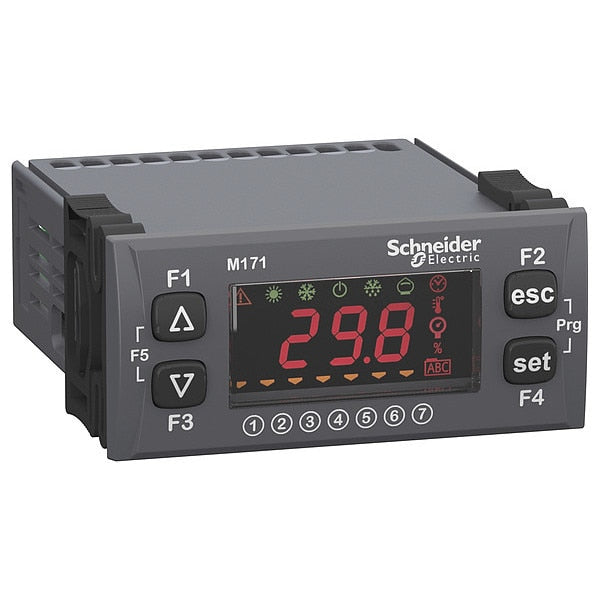

Controller, 12 to 24V, Analog/Relay Output

SKU
Brand Schneider Electric
Categories
Description Controller, Input Voltage 12 to 24V, Output Type Analog, Relay, 2 A Amps, 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link Slots, Timers Programmable, LED Display, Port Type 1 LAN Expansion Bus, 1 RS485, contacts usage Volt-free contacts, Discount Schedule PC12, Modbus, Modicon M171 Optimized Flush mounting 22 I/Os, product specific application HVAC and pumping solution, Depth 2.43 in, Height 4.33 in, Width 5.51 in
graingerSKU: , mscSKU: , zoro_no: G3461185, mongo_id: 65bbe5c13aaddbd5a9fe54c4

Web Price

$268.74 / each

Qty

Product Details

Amps 2 A

Analogue Input Number 2 configurable || 3 analog input NTC

Analogue Input Type voltage 0 to 5 V ratiometric) || voltage 0 to 10 V || NTC temperature probe - 50 to 100 ÃÂ°C 0.1 ÃÂ°C || current 0 to 20 mA/4 to 20 mA || voltage 0 to 1 V

Analogue Output Number 3 voltage 0 to 10 V || 2 PWM/PPM 20 kHz, 12 V, 35 mA

Contacts Usage volt-free contacts

Country of Origin (subject to change) Italy

Depth 2.43 in

Description/Special Features contacts usage Volt-free contacts, Discount Schedule PC12, Modbus, Modicon M171 Optimized Flush mounting 22 I/Os, product specific application HVAC and pumping solution

Discrete Input Logic sink or source (positive/negative)

Discrete Input Number 6

Discrete Output Current 2 A relay

Discrete Output Number 1 open collector || 3 relay outputs SPST with same common || 2 relay outputs SPST with independent common

Display LED

Height 4.33 in

Input Voltage 12 to 24V

Input/Output Number 5 analog output || 6 digital input || 5 analog input || 6 digital output

Number of Inputs/Outputs 22

Number Of Port 1 LAN expansion bus || 1 RS485 - screw terminal block Modbus serial link)

Output Type Analog, Relay

Package Quantity 1

Port Type 1 LAN Expansion Bus, 1 RS485

Product Certifications EAC || CSA || RCM || CE || cURus

Product Or Component Type controller

Product Specific Application HVAC and pumping solution

Sensor Power Supply 12-12 V DC 85 mA || 5-5 V DC 20 mA

Slots 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link

Standards EN 60730-1 || UL 60730-1 || IEC 61000-4-6 || IEC 61000-4-3 || UL 60730-2-9 || IEC 61000-4-4 || IEC 61000-4-2 || CSA E60730-2-9 || IEC 61000-4-5 || EN 60068-2-6 Fc || IEC 61000-4-11 || EN 60730-2-9 || EN 60068-2-27 || CAN/CSA-E60730-1 || UL94 (material V0)

Timers Programmable

Upgradeability Upgradeable through digital modules and upgraded components

Width 5.51 in

[Us] Rated Supply Voltage 12 to 24 V || 24 V
