Home / Controller, 12 to 24VAC/DC

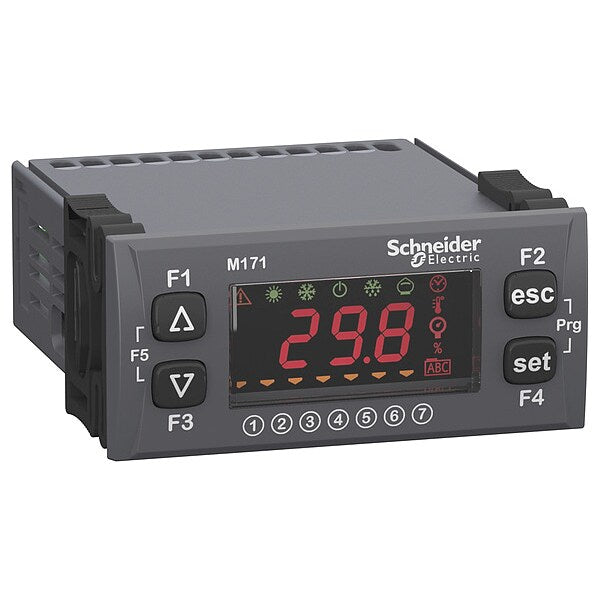

Controller, 12 to 24VAC/DC

Controller, 12 to 24VAC/DC

  • Schneider Electric
  • Controller, Input Voltage 12 to 24V AC/DC, Output Type Analog, Relay, 2 A Amps, Timers Programmable, Yes Clock, No Display Display, Port Type LAN Expansion Bus, contacts usage Volt-free contacts, Discount Schedule PC12, Modicon M171 Optimized Flush mounting 22 I/Os, mounting support DIN rail, product specific application HVAC and pumping solution, relative humidity 10¿90 Percent non-condensing, Depth 2.43 in, Height 4.33 in, Width 5.51 in

    graingerSKU: , mscSKU: , zoro_no: G3462637, mongo_id: 65bbe6b23aaddbd5a9049c67

Web Price
$314.99 / each
Qty

Product Details

-10-55 °C UL 60730-1
-40-85 °C
2 A
2 configurable || 3 analog input NTC
voltage 0 to 5 V ratiometric) || voltage 0 to 10 V || NTC temperature probe - 50 to 100 °C 0.1 °C || current 0 to 20 mA/4 to 20 mA || voltage 0 to 1 V
3 voltage 0 to 10 V || 2 PWM/PPM 20 kHz, 12 V, 35 mA
Yes
volt-free contacts
Italy
2.43 in
contacts usage Volt-free contacts, Discount Schedule PC12, Modicon M171 Optimized Flush mounting 22 I/Os, mounting support DIN rail, product specific application HVAC and pumping solution, relative humidity 10¿90 % non-condensing
sink or source (positive/negative)
6
2 A relay
1 open collector || 3 relay outputs SPST with same common || 2 relay outputs SPST with independent common
No Display
Without Display
4.33 in
12 to 24V AC/DC
5 analog output || 6 digital input || 5 analog input || 6 digital output
IP20
for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green)
DIN rail
22
1 LAN expansion bus
Analog, Relay
II
1
2
LAN Expansion Bus
18 W 24 to 48 V AC/DC
CE || cURus || CSA || EAC
controller
HVAC and pumping solution
built-in -10-55 °C
10-90 % non-condensing
12-12 V DC 85 mA || 5-5 V DC 20 mA
EN/IEC 60730
Programmable
Upgradeable through digital modules and upgraded components
5.51 in
12 to 24 V +/- 20 % AC/DC || 24 V +/- 20 % DC
