Home / Controller Panel, 5.7 in. TFT Color, 24VDC

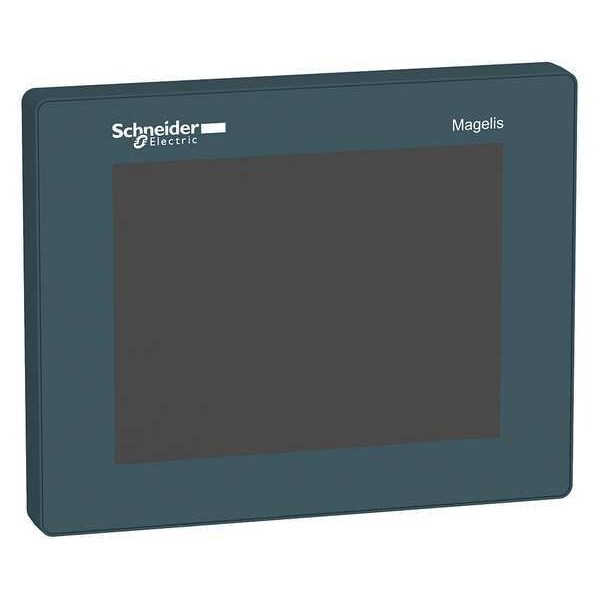

Controller Panel, 5.7 in. TFT Color, 24VDC

Controller Panel, 5.7 in. TFT Color, 24VDC

  • Schneider Electric
  • Controller Panel, TFT Color, Voltage 24V DC, Display 320 x 240 Pixels, Viewing Angle (Deg.) 40 Degrees top, 60 Degrees Bottom, 60 Degrees Left, 60 Degrees Right, 128 KB Internal Data Storage, FRAM Memory, Port Type USB 2.0, USB-Mini B, Width 7.2 in, Height 4.9 in, Depth 8.1 in, For Use With Allen-Bradley, FIPWAY, GE, Mitsubishi Melsec, Modbus, Modbus Plus, Modbus TCP, More, Omron Sysmac, Rockwell Automation, Siemens Simatic, Uni-TE

    graingerSKU: 20XG50, mscSKU: , zoro_no: G6133863, mongo_id: 65bbe66d3aaddbd5a902d215

Web Price
$2,054.99 / each
Qty

Product Details

+/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || 1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || +/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode) || +/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode) || +/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode)
0-50°C
-20-60°C
50000 hours 65000 colours
16 levels via touch panel
Taiwanese (traditional Chinese) || ASCII || Korean || Japanese (ANK, Kanji) || Chinese (simplified Chinese)
0 ms no filter none) || 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) || 3...12 ms integrator none/run/stop)
3.5 mm
China
8.1 in
complete product
7.83 mA fast input || 5 mA digital
2 fast input (normal mode) IEC 61131-2 Type 1 || 14 digital input IEC 61131-2 Type 1
24 V DC sink or source (positive/negative)
2 A 4 A)5 ms opening contact digital output || 2 A 4 A)2 ms closing contact digital output || 300 mA2 ms fast output (normal mode) || 50 mA2 ms fast output (PWM or PTO mode)
2 fast output (normal mode) source || 8 digital output source
24 V DC 19.2...28.8 V)transistor || 24 V DC 5...30 V)relay || 220 V AC 100...250 V)relay
320 x 240 Pixels
320 x 240 pixels QVGA
5.7 inch
TFT Color
Modbus TCP/IP || CANopen || Modbus
electrostatic discharge immunity test 8 kV air discharge) IEC 61000-4-2 || electrostatic discharge immunity test 6 kV contact discharge) IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz...3 GHz) IEC 61000-4-3 || electrical fast transient/burst immunity test 2 kV power lines) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV between analogue I/O and operating voltage) IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV relay wires) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV Ethernet line) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV COM line) IEC 61000-4-4 || electrical fast transient/burst immunity test 1 kV CAN line) IEC 61000-4-4 || surge immunity test 2 kV power supply (common mode)) IEC 61000-4-5 || surge immunity test 1 kV power supply (differential mode)) IEC 61000-4-5 || surge immunity test 1 kV common mode digital I/O) IEC 61000-4-5 || surge immunity test 0.5 kV differential mode digital I/O) IEC 61000-4-5 || conducted RF disturbances 10 V 0.15...80 MHz) IEC 61000-4-6 || conducted emission 150 kHz...30 MHz EN 55011 || radiated emission 30 MHz...1 GHz EN 55011
PC/PBT and PAA
corrosive gas free
by 1 nut Ø 22 mm 1...6 mm thick panel
Allen-Bradley, FIPWAY, GE, Mitsubishi Melsec, Modbus, Modbus Plus, Modbus TCP, More, Omron Sysmac, Rockwell Automation, Siemens Simatic, Uni-TE
4.9 in
10 ms
2.81 kOhm || 4.7 kOhm
2 fast input FI0...FI1 || 14 digital input DI0...DI13 || 2 fast output FQ0...FQ1 || 8 digital output DQ0...DQ7
30 A
> 10 MOhm between the I/O and internal logic || > 10 MOhm between power supply and earth
1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s) || 1 Ethernet TCP/IP - RJ45 || 1 USB 2.0 type mini B || 1 USB 2.0 type A || CANopen master bus - SUB-D 9
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
500 V DC
no indicator
CE
shielded cable <10 m fast input || shielded cable <100 m digital input || unshielded cable <50 m digital input
100 kHz fast input (encoder mode) A/B || 100 kHz fast input single phase || 100 kHz fast input pulse/direction
100 kHz fast output (PTO mode) || 1 kHz fast output (PWM mode)
800...1114 hPa
128 KB Internal Data Storage, FRAM
flash NAND, 128 MB || internal data storage FRAM, 128 kB || application run DRAM, 128 MB
NEMA 4X front panel
1 fast input (HSC mode) || 2 digital input
limited by internal memory capacity
<= 6561.68 ft (2000 m)
Harmony
with
1
2 IEC 60664
USB 2.0, USB-Mini B
24 W
333 MHz
CPU RISC
cULus 508 || KCC || cULus CSA 22-2 No 142 || GOST || cUL 1604 Class 1 Division 2 || C-tick || UKCA || UKEX
small touch HMI controller
built-in
5-85 % without condensation
15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA || 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA
147 m/s² 11 ms on DIN rail)IEC 60068-2-27 || 294 m/s² 6 ms on panel mounting)IEC 60068-2-27
SoMachine
Crystal Clear Display, Digital I/Os with HSC/PTO-PWM Functions and Analog I/Os with Temperature Inputs, Numerous Communication Ports
IEC 61000-6-2 || ANSI/ISA 12-12-01 || CSA C22.2 No 213 Class I Division 2 || FCC Class A || EN 61131-2 || UL 508
0-10000 m
external source
analogue
Upgradeable through digital modules and upgraded components
+/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
60° left || 60° right || 40° top || 60° bottom
40 Degrees top, 60 Degrees Bottom, 60 Degrees Left, 60 Degrees Right
24V DC
7.2 in
24 V 20.4-28.8 V)DC
