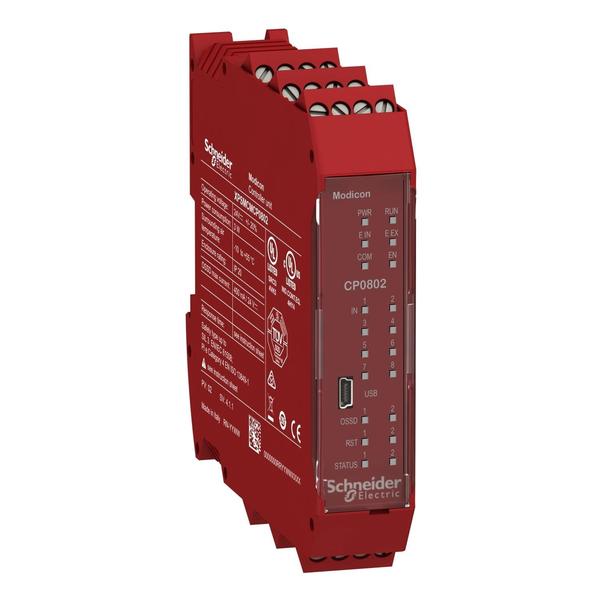

Controller with 8 inputs 2 outputs monit

SKU
Brand Schneider Electric
Categories
Description Controller with 8 inputs 2 outputs monit
graingerSKU: , mscSKU: , zoro_no: G7807183, mongo_id: 65bbe94f22d7a989a99494c7

Web Price

$517.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -10-55ÃÂ°C

Ambient Air Temperature For Storage -20-85ÃÂ°C

Cable Cross Section 0.2-1.5 mmÃÂ² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mmÃÂ² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mmÃÂ² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mmÃÂ² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-1.5 mmÃÂ² - AWG 23...AWG 16 flexible with cable end, without bezel || 0.5-1.5 mmÃÂ² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mmÃÂ² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mmÃÂ² - AWG 24...AWG 14 solid without cable end

Connections - Terminals 2 captive screw terminals, removable terminal block || 1 captive screw terminals, removable terminal block

Country of Origin (subject to change) Italy

Data Storage Equipment SD card optional)

Depth 114.5 mm

Device Short Name XPSMCM

Discrete Input Current 400 mA

Discrete Input Type safety input || PNP

Discrete Input Voltage 24 V

Discrete Output Current 400 mA

Discrete Output Type PNP

Electrical Connection screw terminal

Electromagnetic Compatibility electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3

Function Of Module emergency stop EN/ISO 13850 || guard monitoring EN/ISO 14119 || enabling switch monitoring EN/IEC 60947-5-1 || light curtain monitoring EN/IEC 61496-1 || foot switch monitoring EN/IEC 60947-5-1 || magnetic switch monitoring EN/ISO 14119 || two-hand control EN 574 || safety mat monitoring EN/ISO 14119 || enabling switch monitoring EN 61326-1 || muting function of light curtains EN/IEC 60947-5-1 || counter functions EN/IEC 61800-5-2 || speed monitoring EN/IEC 61800-5-2

Height 99 mm

Inductive Load 30 mH

Insulation 250 V AC between power supply and housing EN/IEC 61800-5-1

Integrated Connection Type backplane expansion bus || USB 2.0 port

Ip Degree Of Protection IP20

Load Capacitance 0.82ÃÂµF

Local Signalling 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 1 LED orange COM communication || 1 LED blue EN master enable || 8 LEDs yellow IN input status || 2 LEDs green/red OUT output status || 2 LEDs yellow RST restart signal || 2 LEDs yellow STATUS output channel

Maximum Number Of I/O Expansion Module 14 128 input || 14 16 output

Mounting Support omega 35 mm DIN rail EN 50022

Number Of Inputs 8 digital input connection || 2 digital interlock start/restart or external device monitoring

Number Of Outputs 2 safety outputs OSSD contactor/drive connection || 4 test line control outputs || 2 configurable diagnostic connection

Overvoltage Category II

Package Quantity 1

Pollution Degree 2

Power Dissipation In W 3 W

Product Certifications cULus || RCM || TUV

Product Or Component Type safety controller CPU

Quality Labels CE

Relative Humidity 10-95 %
