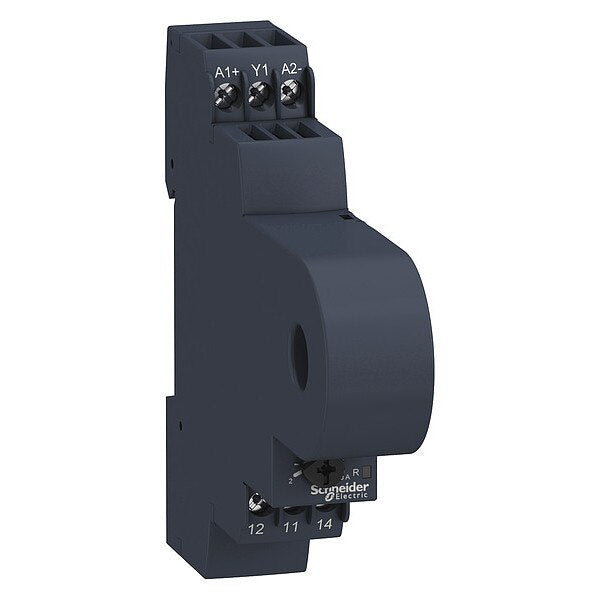

Current Relay 250V 5Amp Rm17

SKU
Brand Schneider Electric
Categories
Description Current Sensor Relay, Input Voltage Current Sensing Relay

Web Price

$178.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Coil Volts 250VAC/DC

Connections - Terminals screw terminals, 1 x 0.5...1 x 4 mmÃÂ² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contacts Material cadmium free

Contacts Type And Composition 1 C/O

Control Circuit Frequency 40...70 Hz sinusoidal

Control Circuit Voltage Limits 15 % + 10 % Un

Country of Origin (subject to change) Multiple

Dielectric Test Voltage 2 kV AC 50 Hz

Electrical Durability 100000 cycles

Electromagnetic Compatibility emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2

Housing Material self-extinguishing plastic

Hysteresis 15-15 % fixed threshold setting

Immunity To Microbreaks 10 ms

Input Current 100000 mA permanent at 25ÃÂ°C || 300000 mA non repetitive < 3 s at 25ÃÂ°C

Input Voltage Current Sensing Relay

Insulation between supply and measurement

Insulation Resistance > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

Item - Relay Current Sensing Relay

Local Signalling for power ON LED (green) || for relay ON LED (yellow)

Marking CE : 73/23/EEC || CE : EMC 89/336/EEC

Maximum Measuring Cycle 30 ms measurement cycle as true rms value

Maximum Power Consumption In Va 3 VA

Maximum Power Consumption In W 1 W

Maximum Switching Voltage 250 V AC/DC

Measurement Accuracy +/- 10 % of the full scale value

Measurement Error +/- 0.05 %/ÃÂ°C with temperature variation || < 1 % over the whole range with voltage variation

Measurement Range 2...20 A current

Mechanical Durability 30000000 cycles

Minimum Switching Current 10 mA 5 V DC

Mounting Support 35 mm symmetrical DIN rail conforming to EN/IEC 60715

Nominal Output Current 5A

Non-Dissipating Shock Wave 4 kV

Operating Position any position without derating

Operating Rate <= 360 operations/hour full load

Output Contacts 1 C/O

Overvoltage Category III IEC 60664-1

Package Quantity 1

Polarity yes DC

Pollution Degree 3 IEC 60664-1

Product Certifications GL || C-tick || GOST || UL || CSA

Product Or Component Type current control relay

Relative Humidity 95-95 % 55-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters overcurrent detection

Relay Name RM17JC

Relay Type current control relay

Repeat Accuracy +/- 0.5 % input and measurement circuit

Response Time < 200 ms (in the event of a fault)

Run-Up Delay At Power-Up 0.5 s

Shock Resistance 15 gn 11 ms IEC 60255-21-1

Standards EN/IEC 60255-6

Supply Voltage Limits 20.4-264 V AC/DC

Switching Capacity In Va 1250 VA

Threshold Setting 10...100 %

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type without

Utilisation Category AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1

Vibration Resistance 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1

Width 17.5 mm

[Ui] Rated Insulation Voltage 400 V IEC 60664-1

[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz +/- 10 %
