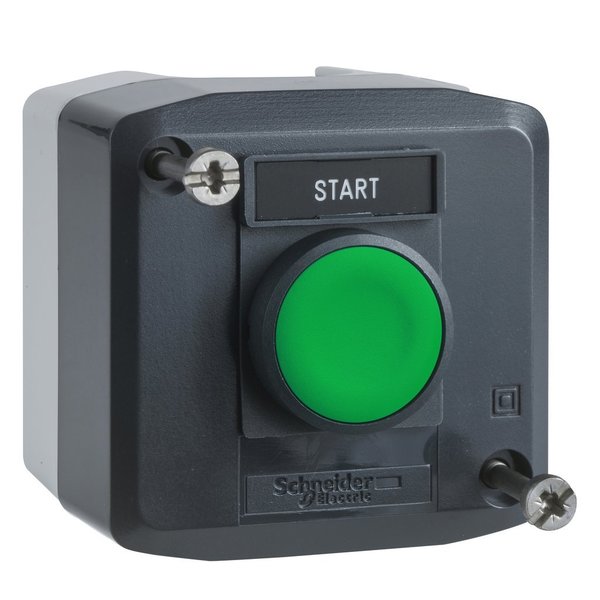

Dark grey station-1 green flush pushbu

SKU
Brand Schneider Electric
Categories
Description Dark grey station - 1 green flush pushbu
graingerSKU: , mscSKU: , zoro_no: G4608542, mongo_id: 65bbe92822d7a989a993aefd

Web Price

$88.69 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Entry 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm

Colour Of Base Of Enclosure light grey RAL 7035)

Colour Of Cover dark grey RAL 7016)

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Control Station Application start function

Control Station Composition 1 flush push-button, green 1 NO START

Country of Origin (subject to change) France

Device Short Name XALD

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4

Ik Degree Of Protection IK03 EN 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

Marking Location marking on legend holder

Material polycarbonate

Mechanical Durability 10000000 cycles

Nema Degree Of Protection NEMA 13 || NEMA 4X

Operating Force 3.8 N NO changing electrical state

Operating Travel 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Profile 1 flush push-button

Operators Description green ''START'' 1 NO

Overvoltage Category class II IEC 60536

Package Quantity 1

Positive Opening without

Product Destination for XB5 ÃÂ 22 mm control and signalling units

Product Or Component Type complete control station

Protective Treatment TH

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Standards JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-1

Tightening Torque 0.8-1.2 N.m EN/IEC 60947-1

Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
