Home / DC Power Supply, 24VDC, 10A, 50/60Hz

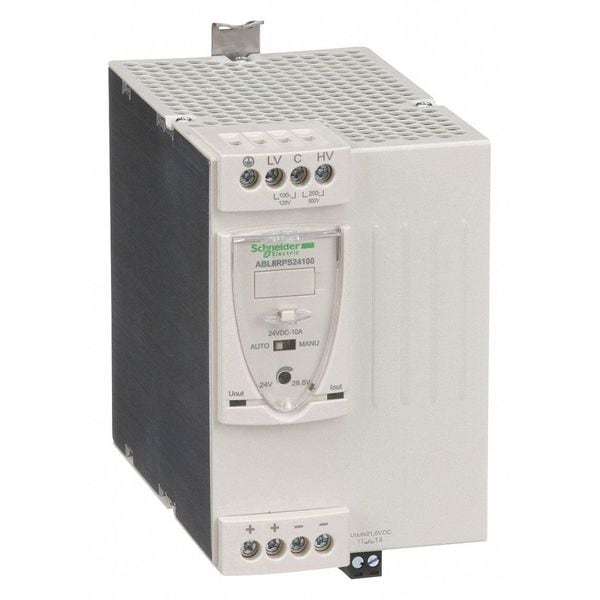

DC Power Supply, 24VDC, 10A, 50/60Hz

SKU
Brand Schneider Electric
Categories
Description DC Power Supply, Input Voltage 100 to 120 V AC, 200 to 500 V AC, Output Voltage 24V DC, Power Rating 240W, Output Amps 10, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 5.27 in, Width 5.51 in, Depth 3.35 in, Series ABL8, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 15, IP Rating 20, Output Noise Less Than or Equal to 200mV, Hold Up Time Greater Than 120 msec @ 400V AC, Greater Than 20 msec @ 100V AC, Greater Than 40 msec @ 240V AC, Status Indicator Green/Orange/Red LED
graingerSKU: 5AET6, mscSKU: 92350206, zoro_no: G7543234, mongo_id: 65bbe6e73aaddbd5a905fea0

Web Price

$637.49 / each

Qty

Product Details

Case Material Plastic Case

Connection Screw Terminal

Country of Origin (subject to change) Multiple

Depth 3.35 in

Features A High Degree Of Output Voltage Stability, A Very Wide Input Voltage Range For The Universal Range, And Undervoltage Protection, Diagnostics Via LED Indicators On The Front Panel, Good Performance, Integrated Overload, Overvoltage, Remote Diagnostics Via A Relay Contact For The Universal Range, Short Circuit, Very Compact Size

Height 5.27 in

Hold Up Time Greater Than 120 msec @ 400V AC, Greater Than 20 msec @ 100V AC, Greater Than 40 msec @ 240V AC

Hz_ 50 to 60 Hz

Includes Power Factor Correction Filter

Input Voltage 100 to 120 V AC, 200 to 500 V AC

IP Rating 20

Mounting Din Rail

NEMA Rating 1

Operating Temp. Range -13 Degrees to 140 Degrees F

Output Amps 10

Output Noise Less Than or Equal to 200mV

Output Voltage 24V DC

Package Quantity 1

Peak Amps 15

Phase - Electrical Single

Power Rating 240W

Protection Overload Manual or Automatic Reset; Overvoltage 30 to 32V, Manual Reset; Short-Circuits Manual or Automatic Reset; Undervoltage Tripping if U Less Than 21.6V; Thermal Automatic Reset

Series ABL8

Standards CB scheme EN 60950-1, cCSAus, cUL us 508, e, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61204, EN 61204-3, IEC/EN 60950-1, RoHS, SELV

Status Indicator Green/Orange/Red LED

Style Switching

Temp. Range 50 to 60ÃÂ°C (with Derating), -25 to 50ÃÂ°C (without Derating)

Width 5.51 in
