Home / DC Power Supply, 24VDC, 20A, 50/60Hz

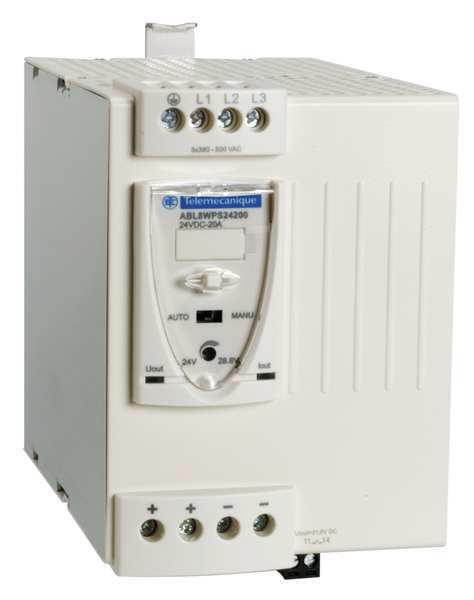

DC Power Supply, 24VDC, 20A, 50/60Hz

SKU
Brand Schneider Electric
Categories
Description DC Power Supply, Input Voltage 380 to 500 V AC, Output Voltage 24V DC, Power Rating 480W, Output Amps 20, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 5.63 in, Width 6.1 in, Depth 3.74 in, Series ABL8, Hz 50 to 60 Hz, Phase - Electrical Three, Peak Amps 1.5, IP Rating 10/20, Output Noise Less Than or Equal to 200mV, Hold Up Time Greater Than 18 msec, Status Indicator Green/Orange/Red LED
graingerSKU: 36T738, mscSKU: , zoro_no: G7506816, mongo_id: 65bbe7793aaddbd5a90991e5

Web Price

$987.49 / each

Qty

Product Details

Case Material Plastic Case

Connection Screw Terminal

Country of Origin (subject to change) Multiple

Depth 3.74 in

Features A High Degree Of Output Voltage Stability, A Very Wide Input Voltage Range For The Universal Range, And Undervoltage Protection, Diagnostics Via LED Indicators On The Front Panel, Good Performance, Integrated Overload, Overvoltage, Remote Diagnostics Via A Relay Contact For The Universal Range, Short Circuit, Very Compact Size

Height 5.63 in

Hold Up Time Greater Than 18 msec

Hz_ 50 to 60 Hz

Includes Power Factor Correction Filter

Input Voltage 380 to 500 V AC

IP Rating 10/20

Mounting Din Rail

Operating Temp. Range -13 Degrees to 140 Degrees F

Output Amps 20

Output Noise Less Than or Equal to 200mV

Output Voltage 24V DC

Package Quantity 1

Peak Amps 1.5

Phase - Electrical Three

Power Rating 480W

Protection Overload Manual or Automatic Reset; Overvoltage 30 to 32V, Manual Reset; Short-Circuits Manual or Automatic Reset; Undervoltage Tripping if U Less Than 21.6V; Thermal Automatic Reset

Series ABL8

Standards CB scheme EN 60950-1, cCSAus, cUL us 508, e, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61204, EN 61204-3, IEC/EN 60950-1, RoHS, SELV

Status Indicator Green/Orange/Red LED

Style Switching

Temp. Range 50 to 60ÃÂ°C (with Derating), -25 to 50ÃÂ°C (without Derating)

Width 6.1 in
