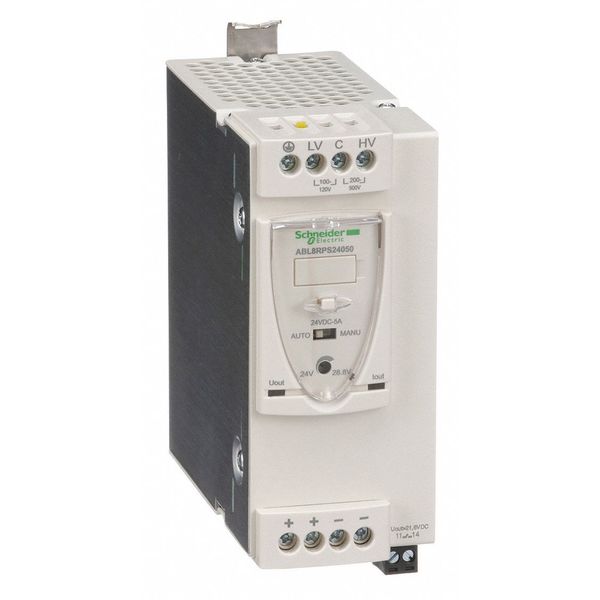

DC Power Supply, 24VDC, 5A, 50/60Hz

SKU
Brand Schneider Electric
Categories
Description DC Power Supply, Input Voltage 100 to 120 V AC, 200 to 500 V AC, Output Voltage 24V DC, Power Rating 120W, Output Amps 5, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 5.27 in, Width 4.72 in, Depth 2.2 in, Series ABL8, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 1.5, IP Rating 20, Output Noise Less Than or Equal to 200mV, Hold Up Time Greater Than 18 msec, Status Indicator Green/Orange/Red LED, NEMA Rating 1
graingerSKU: 36T737, mscSKU: 69523637, zoro_no: G8521432, mongo_id: 65bbe9bf22d7a989a9974b2c

Web Price

$437.49 / each

Qty

Product Details

Case Material Plastic Case

Connection Screw Terminal

Country of Origin (subject to change) Multiple

Depth 2.2 in

Features A High Degree Of Output Voltage Stability, A Very Wide Input Voltage Range For The Universal Range, And Undervoltage Protection, Diagnostics Via LED Indicators On The Front Panel, Good Performance, Integrated Overload, Overvoltage, Remote Diagnostics Via A Relay Contact For The Universal Range, Short Circuit, Very Compact Size

Height 5.27 in

Hold Up Time Greater Than 18 msec

Hz_ 50 to 60 Hz

Includes Power Factor Correction Filter

Input Voltage 100 to 120 V AC, 200 to 500 V AC

IP Rating 20

Mounting Din Rail

NEMA Rating 1

Operating Temp. Range -13 Degrees to 140 Degrees F

Output Amps 5

Output Noise Less Than or Equal to 200mV

Output Voltage 24V DC

Package Quantity 1

Peak Amps 1.5

Phase - Electrical Single

Power Rating 120W

Protection Overload Manual or Automatic Reset; Overvoltage 30 to 32V, Manual Reset; Short-Circuits Manual or Automatic Reset; Undervoltage Tripping if U Less Than 21.6V; Thermal Automatic Reset

Series ABL8

Standards CB scheme EN 60950-1, cCSAus, cUL us 508, e, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61204, EN 61204-3, IEC/EN 60950-1, RoHS, SELV

Status Indicator Green/Orange/Red LED

Style Switching

Temp. Range 50 to 60ÃÂ°C (with Derating), -25 to 50ÃÂ°C (without Derating)

Width 4.72 in
