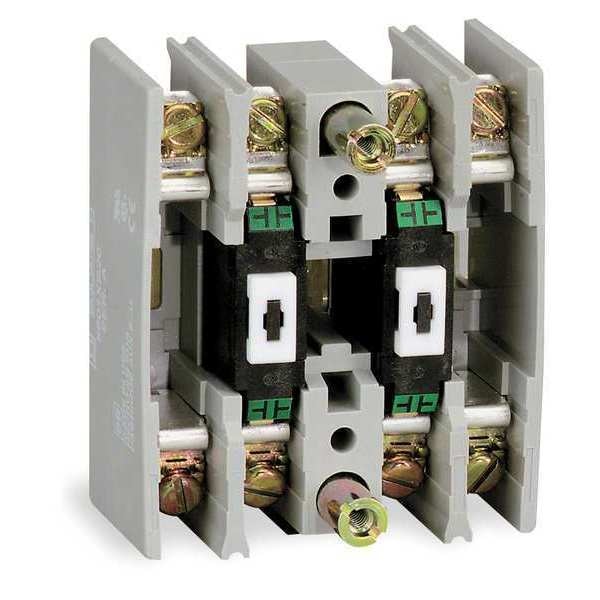

Deck, Adder

SKU
Brand Schneider Electric
Categories
Description Adder Deck, For Use With 4 Convertible Contact Cartridges, Includes Not Applicable, Module Function Expansion, Standards CE Certified, CSA Certified, RoHS Compliant, UL Listed
graingerSKU: 4B513, mscSKU: , zoro_no: G1797817, mongo_id: 65bbe78f9a749db822742cf0

Web Price

$151.24 / each

Qty

Product Details

Accessory Group A, F

Awg Gauge AWG 18 to AWG 12 copper

Contacts Type And Composition 4 NO 4 standard contact cartridges

Country of Origin (subject to change) Mexico

Electrical Connection screw clamp terminals

For Use With 4 Convertible Contact Cartridges

Includes Not Applicable

Module Function Expansion

Package Quantity 1

Product Certifications CE || CSA LR60905 class 3211 02 || UL recognized E78403 CCN NKCR2

Product Or Component Type adder deck

Rated Breaking Capacity 6 A 120 V AC inductive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508

Rated Short Circuit Making Capacity 60 A 120 V AC inductive control circuit UL 508; 30 A 240 V AC inductive control circuit UL 508; 15 A 480 V AC inductive control circuit UL 508; 12 A 600 V AC inductive control circuit UL 508; 10 A Less than or Equal to 600 V AC resistive control circuit UL 508; 1.1 A 125 V DC inductive control circuit UL 508; 0.55 A 250 V DC inductive control circuit UL 508; 0.2 A 301 to 600 V DC inductive control circuit UL 508; 4 A 125 V DC inductive control circuit UL 508; 0.8 A 250 V DC resistive control circuit UL 508

Relay Type control relay

Standards CE Certified, CSA Certified, RoHS Compliant, UL Listed

Terminal Tightening Torque Control circuit 9.03 to 12.04 lbf.in (1.02 to 1.36 N.m) screw terminals

Tightening Torque control circuit 1.02-1.36 N.m screw terminals

[Icm] Rated Short-Circuit Making Capacity 60 A 120 V AC inductive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508
