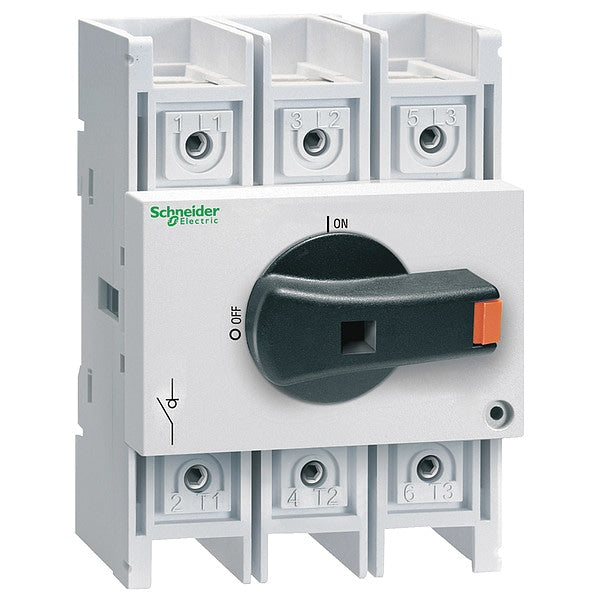

Disconnect Switch, 125 A, 480V AC, Gray

SKU
Brand Schneider Electric
Categories
Description Disconnect Switch, Current Rating 125 A, Depth 4 in, For Fuse Class Not Applicable, Handle Color Gray, Height 3 in, Includes Handle, Padlock, Mounting Style DIN Rail, Number of Poles 3, Phase Three, Protection Method Non-Fusible
graingerSKU: 55WT65, mscSKU: , zoro_no: G3615483, mongo_id: 65bbe89622d7a989a99024d6

Web Price

$231.24 / each

Qty

Product Details

Accessory Type Body Switch Disconnector

Ambient Air Temperature For Operation -25-55ÃÂ°C

Breaking Capacity 187.5 A 690 V AC-21A) || 375 A 690 V AC-22A) || 1000 A 690 V AC-23A)

Color Gray

Compatibility Code VLS

Connections - Terminals power circuit screw clamp terminals 50-50 mmÃÂ² solid || power circuit screw clamp terminals 70-70 mmÃÂ² flexible - without cable end

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Italy

Current Rating 125 A

Depth 4 in

Description/Special Features Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free

Device Composition switch || handle

Device Short Name VLS3P

Door Handle Color Gray

Electrical Durability 30000 cycles AC-21

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Fixing Mode by clips back

For Fuse Class Not Applicable

For Use With VLS1GR2, VLS1NR2, VLS8C2, VLS8M2, VLSA10R2E, VLSC3P2, VLSH3S7BD, VLSH3S7RD, VLSHA7

Handle Color Gray

Handle Colour black

Handle Front Plate Colour grey

Height 3 in

Includes Handle, Padlock

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

Making Capacity 187.5 A 690 V AC-21A || 375 A 690 V AC-22A || 1250 A 690 V AC-23A

Marking 0 - 1

Max. Voltage 8 kV

Mechanical Durability 30000 cycles

Mechanical Robustness vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Style DIN Rail

Mounting Support back DIN rail

Network Frequency 50/60 Hz

Network Type AC

Number of Poles 3

Package Quantity 1

Performance Level high performance

Phase Three

Poles Description 3P

Product Certifications cULus || GL

Product Name TeSys VARIO LS

Product Or Component Type switch body

Protection Method Non-Fusible

Range TeSys

Rated Conditional Short-Circuit Current 50 kA 400 V 125 A gG

Rated Operational Power In W 55 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)

Rotary Handle Mounting Style direct

Rotary Handle Padlocking 1 padlock 4-4 mm

Standards UL98CSA C22.2 No 4IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 5-6 N.m screw clamp terminals

UL 98 Certification Yes

Voltage 480V AC

Voltage Rating 480V AC

Width 2 3/4 in

[Icm] Rated Short-Circuit Making Capacity 3550 A 690 V

[Icw] Rated Short-Time Withstand Current 2500 A 690 V 1 s

[Ie] Rated Operational Current 100 A Ue: 600 V UL98 || 125 A AC-21A Ue: 400 V || 125 A AC-21A Ue: 500 V || 125 A AC-21A Ue: 690 V || 125 A AC-22A Ue: 400 V || 125 A AC-22A Ue: 500 V || 125 A AC-22A Ue: 690 V || 125 A AC-23A Ue: 400 V || 100 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 100 A

[Ith] Conventional Free Air Thermal Current 125 A 55ÃÂ°C

[Ue] Rated Operational Voltage 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
