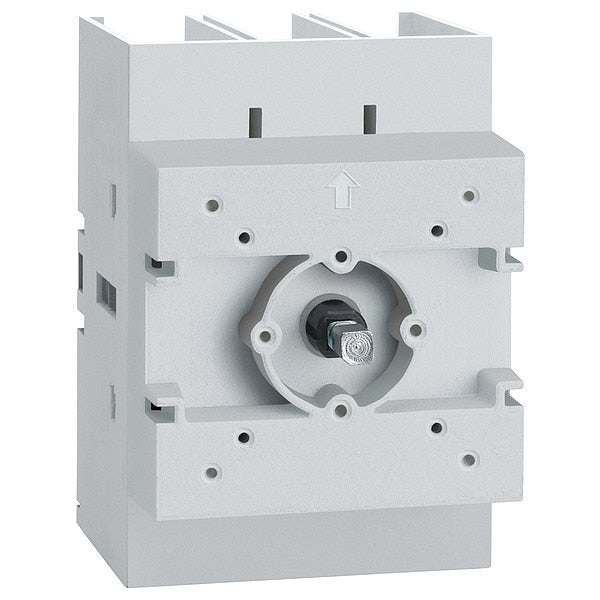

Disconnect Switch, 125 A, 480V AC

SKU
Brand Schneider Electric
Categories
Description Disconnect Switch, Current Rating 125 A, Depth 4 in, For Fuse Class Not Applicable, Height 2 3/4 in, Includes Padlock, Mounting Style Door, Number of Poles 3, Phase Three, Protection Method Non-Fusible
graingerSKU: 55WT64, mscSKU: , zoro_no: G3614582, mongo_id: 65bbe79a9a749db8227484f5

Web Price

$348.74 / each

Qty

Minimum order: 135

Product Details

Accessory Type Body Switch Disconnector

Ambient Air Temperature For Operation -25-55ÃÂ°C

Breaking Capacity 187.5 A 690 V AC-21A) || 375 A 690 V AC-22A) || 1000 A 690 V AC-23A)

Color Gray

Connections - Terminals power circuit screw clamp terminals 50-50 mmÃÂ² solid || power circuit screw clamp terminals 70-70 mmÃÂ² flexible - without cable end

Contacts Type And Composition 3 NO

Country of Origin (subject to change) Italy

Current Rating 125 A

Depth 4 in

Description/Special Features Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free

Device Short Name VLS3P

Electrical Durability 30000 cycles AC-21

Fire Resistance 960ÃÂ°C IEC 60695-2-11

For Fuse Class Not Applicable

For Use With VLS1GD2, VLS1ND2, VLSC3P2

Height 2 3/4 in

Includes Padlock

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

Making Capacity 1250 A 690 V AC-23A || 187.5 A 690 V AC-21A || 375 A 690 V AC-22A

Max. Voltage 8 kV

Mechanical Durability 30000 cycles

Mechanical Robustness vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Style Door

Mounting Support door

Network Frequency 50/60 Hz

Network Type AC

Number of Poles 3

Package Quantity 1

Performance Level high performance

Phase Three

Poles Description 3P

Product Certifications cULus || GL

Product Name TeSys VARIO LS

Product Or Component Type switch body

Protection Method Non-Fusible

Range TeSys

Rated Conditional Short-Circuit Current 50 kA 400 V 125 A gG

Rated Operational Power In W 55 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)

Standards UL98CSA C22.2 No 4IEC 60947-3

Tightening Torque power circuit 5-6 N.m screw clamp terminals

UL 98 Certification Yes

Voltage 480V AC

Voltage Rating 480V AC

Width 2 3/4 in

[Icm] Rated Short-Circuit Making Capacity 3550 A 690 V

[Icw] Rated Short-Time Withstand Current 2500 A 690 V 1 s

[Ie] Rated Operational Current 100 A Ue: 600 V UL98 || 125 A AC-21A Ue: 400 V || 125 A AC-21A Ue: 500 V || 125 A AC-21A Ue: 690 V || 125 A AC-22A Ue: 400 V || 125 A AC-22A Ue: 500 V || 125 A AC-22A Ue: 690 V || 125 A AC-23A Ue: 400 V || 100 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 100 A

[Ith] Conventional Free Air Thermal Current 125 A 55ÃÂ°C

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz, 600 V AC 50/60 Hz UL 508

[Uimp] Rated Impulse Withstand Voltage 8 kV
