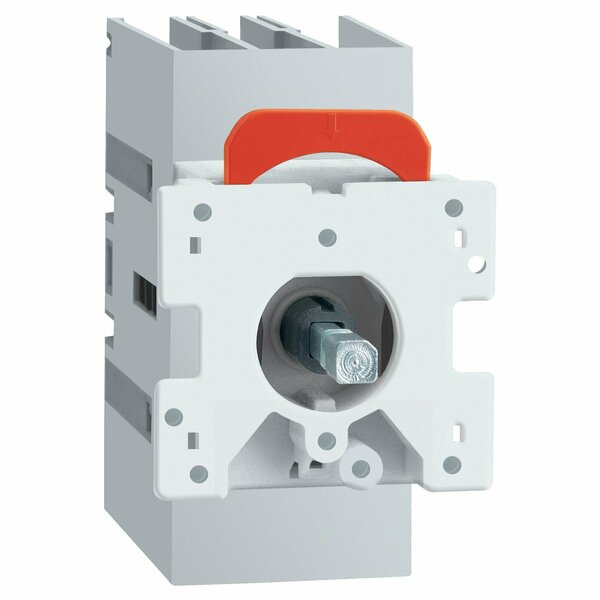

Disconnect Switch, 16 A, 690V AC, 3 pole

SKU
Brand Schneider Electric
Categories
Description Disconnect Switches, Use Body Switch Disconnector, 16 Amps, Voltage 690V AC, 20 IP Rating, Number of Poles 3, Contact Form 3NO, Height 2.87 in, Width 1.77 in, Depth 3.07 in, Standards UL 508, IEC 60947-3, CSA C22.2 No 14

Web Price

$82.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-55ÃÂ°C

Amps 16 A

Breaking Capacity 24 A 690 V AC-21A) || 48 A 690 V AC-22A) || 128 A 690 V AC-23A)

Color Gray

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 16-16 mmÃÂ² flexible - without cable end

Contact Form 3NO

Contacts Type And Composition 3 NO

Country of Origin (subject to change) Italy

Depth 3.07 in

Device Short Name VLS3P

Electrical Durability 100000 cycles AC-21A

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Height 2.87 in

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating 20

Making Capacity 24 A 690 V AC-21A || 48 A 690 V AC-22A || 160 A 690 V AC-23A

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Support door

Network Frequency 50/60 Hz

Network Type AC

Number of Poles 3

Package Quantity 1

Performance Level high performance

Poles Description 3P

Product Certifications cULus || GL

Product Name TeSys VARIO LS

Product Or Component Type switch body

Range TeSys

Rated Conditional Short-Circuit Current 50 kA 400 V 16 A gG

Rated Operational Power In W 7.5 kW 400 V AC-23A) || 7.5 kW 500 V AC-23A) || 11 kW 690 V AC-23A)

Standards UL 508, IEC 60947-3, CSA C22.2 No 14

Tightening Torque power circuit 1.8-2 N.m screw clamp terminals

Use Body Switch Disconnector

Voltage 690V AC

Width 1.77 in

[Icm] Rated Short-Circuit Making Capacity 1128 A 690 V

[Icw] Rated Short-Time Withstand Current 800 A 690 V 1 s

[Ie] Rated Operational Current 16 A Ue: 600 V UL 508 || 16 A AC-21A Ue: 400 V || 16 A AC-21A Ue: 500 V || 16 A AC-21A Ue: 690 V || 16 A AC-22A Ue: 400 V || 16 A AC-22A Ue: 500 V || 16 A AC-22A Ue: 690 V || 16 A AC-23A Ue: 400 V || 16 A AC-23A Ue: 500 V || 16 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 16 A

[Ith] Conventional Free Air Thermal Current 16 A 55ÃÂ°C

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz, 600 V AC 50/60 Hz UL 508

[Uimp] Rated Impulse Withstand Voltage 8 kV
