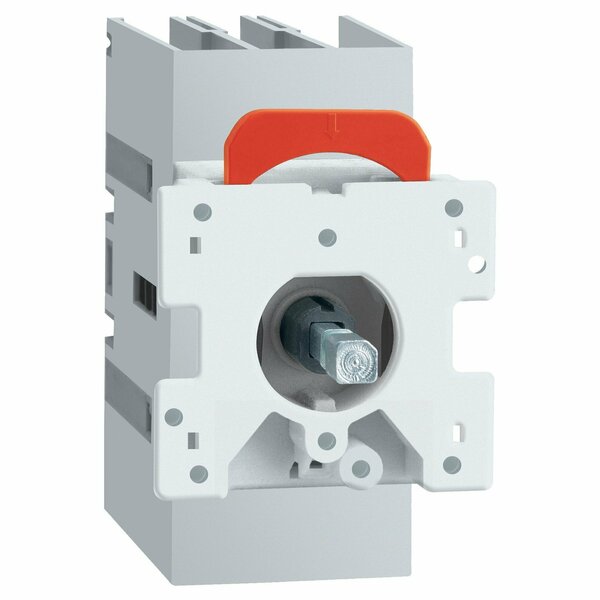

Disconnect Switch, 25 A, 32 A, 690V AC, 3 pole

SKU
Brand Schneider Electric
Categories
Description Disconnect Switch, Use Body Switch Disconnector, Intermittent Duty, 25.0, 32.0 Amps, Voltage 690V AC, 29.5 HP @ 690V AC, 24.8 HP @ 500V AC, 20 HP @ 400V AC HP, 20 IP Rating, Number of Poles 3, Contact Form 3 NO, Height 2.95 in, Width 1.42 in, Depth 3.07 in, Standards UL 508, IEC 60947-3, CSA C22.2 No 14

Web Price

$102.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-55ÃÂ°C

Amps 25 A, 32 A

Breaking Capacity 48 A 690 V AC-21A) || 96 A 690 V AC-22A) || 256 A 690 V AC-23A)

Color Gray

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 16-16 mmÃÂ² flexible - without cable end

Contact Form 3NO

Contacts Type And Composition 3 NO

Conventional Free Air Thermal Current 32 A (at 131ÃÂ°F (55ÃÂ°C))

Country of Origin (subject to change) Italy

Depth 3.07 in

Device Short Name VLS3P

Duty Intermittent

Electrical Durability 100000 cycles AC-21A

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Height 2.95 in

HP_ 29.5 HP @ 690V AC, 24.8 HP @ 500V AC, 20 HP @ 400V AC

Iec Rated Operational Power in W 15 kW 400 V AC-23A; 18.5 kW 500 V AC-23A; 22 kW 690 V AC-23A)

IEC Terminal Connection Power circuit screw clamp terminals 0.02 inÃÂ² (10 mmÃÂ²) solid; Power circuit screw clamp terminals 0.02 inÃÂ² (16 mmÃÂ²) flexible - without cable end

Includes Rotary Handle

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating 20

Making Capacity 320 A 690 V AC-23A || 48 A 690 V AC-21A || 96 A 690 V AC-22A

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Support door

Network Frequency 50/60 Hz

Network Type AC

Number of Poles 3

Package Quantity 1

Performance Level high performance

Poles Description 3P

Product Certifications cULus || GL

Product Name TeSys VARIO LS

Product Or Component Type switch body

Range TeSys

Rated Conditional Short-Circuit Current 50 kA 400 V 32 A gG

Rated Operational Current 32 A Ue: 600 V UL 508; 32 A AC-21A Ue: 400 V; 32 A AC-21A Ue: 500 V; 32 A AC-21A Ue: 690 V; 32 A AC-22A Ue: 400 V; 32 A AC-22A Ue: 500 V; 32 A AC-22A Ue: 690 V; 32 A AC-23A Ue: 400 V; 25 A AC-23A Ue: 500 V; 25 A AC-23A Ue: 690 V

Rated Operational Power In W 15 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)

Rated Operational Voltage 690 V AC 50/60 Hz

Short Circuit Current Rating Fuse RK5 45 A maximum: 5 kA at 600 V AC

Standards UL 508, IEC 60947-3, CSA C22.2 No 14

Tightening Torque power circuit 1.8-2 N.m screw clamp terminals

UL Maxium Horsepower Ratings 10 hp 200/208 V AC; 10 hp 240 V AC; 20 hp 480 V AC; 20 hp 600 V AC; 2 hp 120 V AC; 5 hp 240 V AC

UL Rated Operational Voltage 600 V AC 50/60 Hz UL 508

UL Wire Size AWG 18 to AWG 6 copper

Use Body Switch Disconnector

Voltage 690V AC

Width 1.42 in

[Icm] Rated Short-Circuit Making Capacity 1128 A 690 V

[Icw] Rated Short-Time Withstand Current 800 A 690 V 1 s

[Ie] Rated Operational Current 32 A Ue: 600 V UL 508 || 32 A AC-21A Ue: 400 V || 32 A AC-21A Ue: 500 V || 32 A AC-21A Ue: 690 V || 32 A AC-22A Ue: 400 V || 32 A AC-22A Ue: 500 V || 32 A AC-22A Ue: 690 V || 32 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 32 A

[Ith] Conventional Free Air Thermal Current 32 A 55ÃÂ°C

[Ue] Rated Operational Voltage 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
