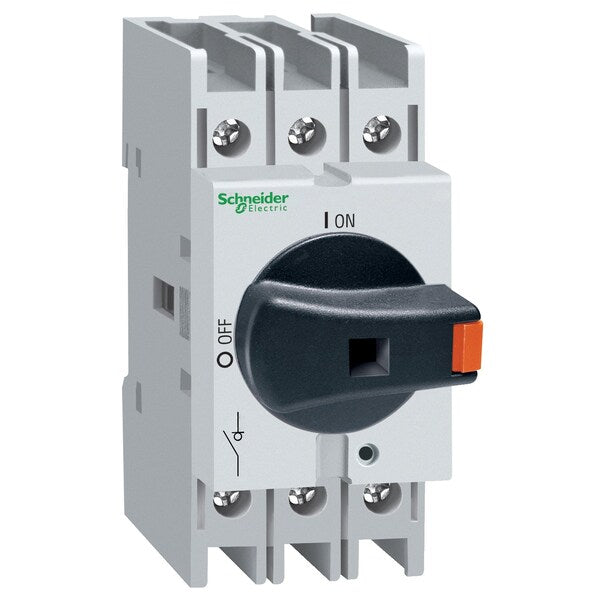

Disconnect Switch, 25 A, 40 A, 690V AC, 3 pole

SKU
Brand Schneider Electric
Categories
Description Disconnect Switch, Use Body Switch Disconnector, Intermittent Duty, 25 A, 40 A Amps, Voltage 690 V AC, 24.8 HP @ 400V AC, 24.8 HP @ 500V AC, 29.5 HP @ 690V AC HP, 20 IP Rating, Number of Poles 3, Contact Form 3 NO, Height 2.95 in, Width 1.42 in, Depth 3.07 in, Standards CSA C22.2 No 14, IEC 60947-3, UL 508
graingerSKU: 615A67, mscSKU: , zoro_no: G0859002, mongo_id: 65bbe8479a749db822781c06

Web Price

$62.94 / each

Qty

Product Details

Ambient Air Temperature For Operation -25-55ÃÂ°C

Amps 25 A, 40 A

Breaking Capacity 60 A 690 V AC-21A) || 120 A 690 V AC-22A) || 320 A 690 V AC-23A)

Color Gray

Compatibility Code VLS

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 16-16 mmÃÂ² flexible - without cable end

Contact Form 3NO

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Italy

Depth 3.07 in

Device Composition handle || switch

Device Short Name VLS3P

Duty Intermittent

Electrical Durability 100000 cycles AC-21A

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Fixing Mode by clips back

Handle Colour black

Handle Front Plate Colour grey

Height 2.95 in

HP_ 24.8 hp @ 400V AC, 24.8 hp @ 500V AC, 29.5 hp @ 690V AC

Includes Rotary Handle

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

IP Rating 20

Making Capacity 60 A 690 V AC-21A || 120 A 690 V AC-22A || 400 A 690 V AC-23A

Marking 0 - 1

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Support back DIN rail

Network Frequency 50/60 Hz

Network Type AC

Number of Poles 3

Package Quantity 1

Performance Level high performance

Poles Description 3P

Product Certifications cULus || GL

Product Name TeSys VARIO LS

Product Or Component Type switch body

Range TeSys

Rated Conditional Short-Circuit Current 50 kA 400 V 40 A gG

Rated Operational Power In W 18.5 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)

Rotary Handle Mounting Style direct

Rotary Handle Padlocking 1 padlock 4-4 mm

Standards CSA C22.2 No 14, IEC 60947-3, UL 508

Suitability For Isolation yes

Tightening Torque power circuit 1.8-2 N.m screw clamp terminals

Use Body Switch Disconnector

Voltage 690V AC

Width 1.42 in

[Icm] Rated Short-Circuit Making Capacity 1128 A 690 V

[Icw] Rated Short-Time Withstand Current 800 A 690 V 1 s

[Ie] Rated Operational Current 40 A Ue: 600 V UL 508 || 40 A AC-21A Ue: 400 V || 40 A AC-21A Ue: 500 V || 40 A AC-21A Ue: 690 V || 40 A AC-22A Ue: 400 V || 40 A AC-22A Ue: 500 V || 40 A AC-22A Ue: 690 V || 40 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 40 A

[Ith] Conventional Free Air Thermal Current 40 A 55ÃÂ°C

[Ue] Rated Operational Voltage 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
