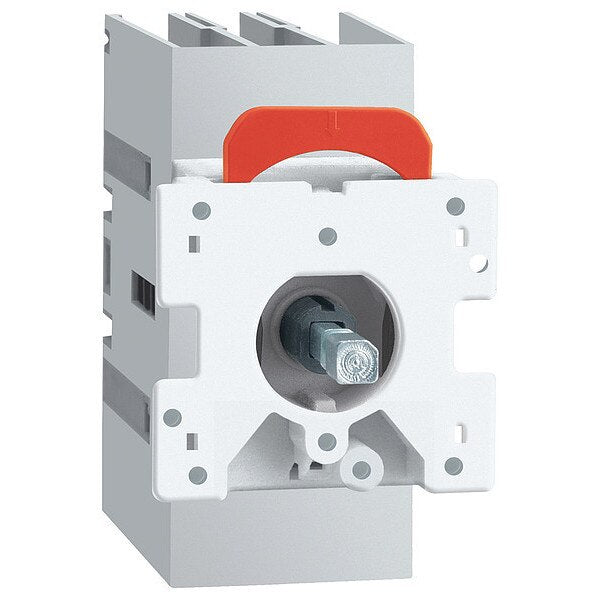

Name: Disconnect Switch, 40 A, 480V AC
Brand: Schneider Electric
SKU: G3546366
Price: 104.31 USD
Availability: InStock

Home / Disconnect Switch, 40 A, 480V AC

Disconnect Switch, 40 A, 480V AC

SKU
Brand Schneider Electric
Categories
Description Disconnect Switch, Current Rating 40 A, Depth 3 in, For Fuse Class Not Applicable, Height 2 3/4 in, Includes Padlock, Mounting Style Door, Number of Poles 3, Phase Three, Protection Method Non-Fusible
graingerSKU: 55WT61, mscSKU: , zoro_no: G3546366, mongo_id: 65bbe70a3aaddbd5a906ea7c

Web Price

$104.31 / each

Qty

Product Details

Accessory Type Body Switch Disconnector

Ambient Air Temperature For Operation -25-55ÃÂ°C

Breaking Capacity 60 A 690 V AC-21A) || 120 A 690 V AC-22A) || 320 A 690 V AC-23A)

Color Gray

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 16-16 mmÃÂ² flexible - without cable end

Contacts Type And Composition 3 NO

Country of Origin (subject to change) Italy

Current Rating 40 A

Depth 3 in

Description/Special Features Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free

Device Short Name VLS3P

Electrical Durability 100000 cycles AC-21A

Fire Resistance 960ÃÂ°C IEC 60695-2-11

For Fuse Class Not Applicable

For Use With VLS1GD1, VLS1ND1, VLSC3P1, VLSH2H5B, VLSH2H5R

Height 2 3/4 in

Includes Padlock

Intermittent Duty Class class 120 - 60 %

Ip Degree Of Protection IP20 conforming to IEC 60529

Making Capacity 120 A 690 V AC-22A || 400 A 690 V AC-23A || 60 A 690 V AC-21A

Max. Voltage 8 kV

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27

Mounting Style Door

Mounting Support door

Network Frequency 50/60 Hz

Network Type AC

Number of Poles 3

Package Quantity 1

Performance Level high performance

Phase Three

Poles Description 3P

Product Certifications cULus || GL

Product Name TeSys VARIO LS

Product Or Component Type switch body

Protection Method Non-Fusible

Range TeSys

Rated Conditional Short-Circuit Current 50 kA 400 V 40 A gG

Rated Operational Power In W 18.5 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)

Standards UL 508CSA C22.2 No 14IEC 60947-3

Tightening Torque power circuit 1.8-2 N.m screw clamp terminals

UL 508 Certification Yes

Voltage 480V AC

Voltage Rating 480V AC

Width 1 3/4 in

[Icm] Rated Short-Circuit Making Capacity 1128 A 690 V

[Icw] Rated Short-Time Withstand Current 800 A 690 V 1 s

[Ie] Rated Operational Current 40 A Ue: 600 V UL 508 || 40 A AC-21A Ue: 400 V || 40 A AC-21A Ue: 500 V || 40 A AC-21A Ue: 690 V || 40 A AC-22A Ue: 400 V || 40 A AC-22A Ue: 500 V || 40 A AC-22A Ue: 690 V || 40 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V

[Ithe] Conventional Enclosed Thermal Current 40 A

[Ith] Conventional Free Air Thermal Current 40 A 55ÃÂ°C

[Ue] Rated Operational Voltage 600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
